Product Parameters
| Run-out: | 0.002 mm |
| Material: | Ductile Cast Iron |
| R.P.M.: | Max. 4000 RPM |
| Torque: | Max. 25 Nm |
| Drilling: | Max. 12 Nm |
| Tapping: | Max. M10 |
| Gear Ratio: | 1 : 1 |
| Spindle Type: | BT; SK(ISO); CAT; HSK |
| Standard Accessory: | Hook Spanner; ER Wrench; ER Nut |
| Output Rotation: | Reverse to Input Rotation |

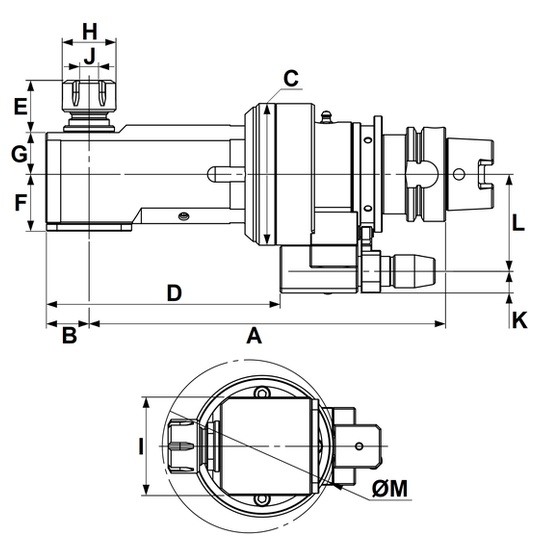

| IMTE No. | Part No. | A | B | C | D | E max |
F | G | H | I | J | K | L | M |
| IMT202006 | AHD-HSK63-A1 | 238.9 | 29 | 95 | 157 | 35 | 38 | 28 | 34 | 66 | 1~13 ER20 | 14.5 | 65/80 | 116 |
| IMT202007 | AHD-HSK63-A3 | 238.9 | 29 | 95 | 157 | 47 | 38 | 28 | 43 | 66 | 2~16 ER25 | 14.5 | 65/80 | 125 |
Unless otherwise specified, all dimensions are in millimeters
