BORING BAR EXTENDER OD=20 mm ID= 6 mm L=100 mm
BORING BAR EXTENDER OD=20 mm ID= 6 mm L=100 mm

BORING BAR EXTENDER OD=20 mm ID= 6 mm L=100 mm

SKU: IMT101261

IMT101261 / L30001301

Product Parameters

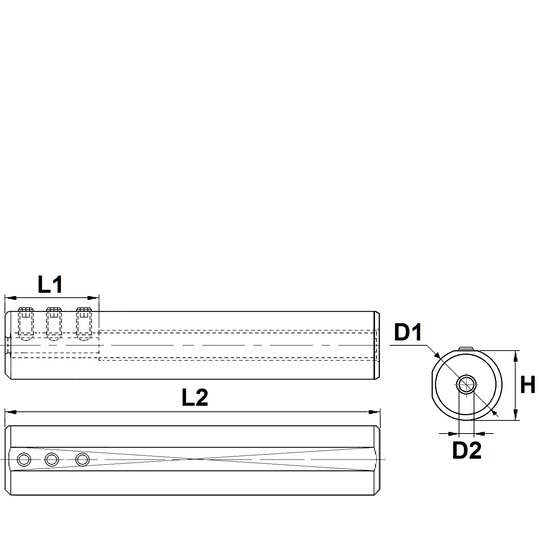

IMTE No. Part No. Ø D1 Ø D2 L1 L2 H
IMT101255 H19.05-04-100 3/4″ 4 25 100 18.5
IMT101256 H19.05-06-100 6 35
IMT101257 H19.05-08-100 8 45
IMT101258 H19.05-10-100 10 50
IMT101259 H19.05-12-100 12 50
IMT101260 H20-04-100 20 4 25 100 19.5
IMT101261 H20-06-100 6 35
IMT101262 H20-08-100 8 45
IMT101263 H20-10-100 10 50
IMT101264 H20-12-100 12 50
IMT101265 H22-04-100 22 4 25 100 21.5
IMT101266 H22-06-100 6 35
IMT101267 H22-08-100 8 45
IMT101268 H22-10-100 10 50
IMT101269 H22-12-100 12 50
IMT101270 H25.4-04-100 1″ 4 25 100 24.9
IMT101271 H25.4-05-100 5 25
IMT101272 H25.4-06-100 6 35
IMT101273 H25.4-08-100 8 45
IMT101274 H25.4-10-100 10 50
IMT101275 H25.4-12-100 12 50
