Sale!
CAT40 BORING HEAD HOLDER D=(1.457) Inch L=(4.92) Inch

CAT40 BORING HEAD HOLDER D=(1.457) Inch L=(4.92) Inch

SKU: SKU006008

L30000091 / Delivery: 6 weeks

Product Parameters

Tool Holder Turret Interface:

  • Turret: CNC Milling Spindle
  • Tooling Interface: CAT-40
  • Power Coupling: Pull stud
  • Y Axis: N/S

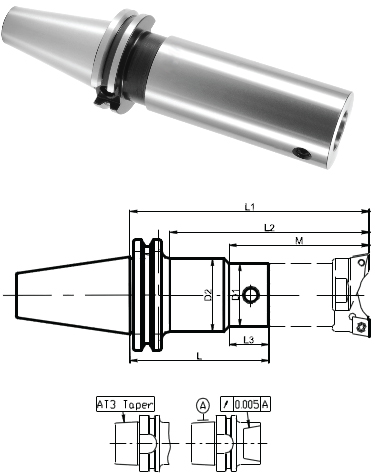

Order Code D1 D2 M L L1 L2 L3 Weight
CAT40-ECK1-2.36" 0.906   2.992 2.36 3.937 2.992   0.9
CAT40-ECK1-3.15" 3.780 3.15 4.724 3.780 1.0
CAT40-ECK1-3.94" 1.417 3.937 3.94 5.512 4.173 2.362 1.1
CAT40-ECK2-3.15" 1.142   3.976 3.15 4.921 3.976   1.0
CAT40-ECK2-3.94" 4.763 3.94 5.709 4.764 1.2
CAT40-ECK2-4.92" 1.575 4.960 4.92 6.693 5.748 3.189 1.4
CAT40-ECK3-3.94" 1.457   5.157 3.94 6.102 5.157   1.4
CAT40-ECK3-4.92" 6.142 4.92 7.087 6.142 1.5
CAT40-ECK4-3.94" 1.900 5.354 3.94 6.299 5.354 1.7
CAT40-ECK4-4.92" 6.339 4.92 7.283 6.339 1.9
CAT40-ECK5-3.94" 2.362 5.945 3.94 6.900 6.945 1.9
CAT40-ECK5-4.92" 6.929 4.92 7.874 6.929 2.4
CAT40-ECK6-3.94" 3.150 6.535 3.94 7.480 6.535 2.7
CAT50-ECK1-4.92" 0.906 1.417 3.937 4.92 6.496 5.551 2.362 3.1
CAT50-ECK2-3.94" 1.142   4.764 3.94 5.709 4.764   2.9
CAT50-ECK2-4.92" 5.748 4.92 6.693 5.748 3.1
CAT50-ECK3-3.94" 1.457 5.157 3.94 6.102 5.157 3.2
CAT50-ECK3-4.92" 6.142 4.92 7.087 6.142 3.3
CAT50-ECK3-5.91" 7.126 5.91 8.071 7.126 3.6
CAT50-ECK4-3.94" 1.900 6.354 3.94 6.299 5.354 3.3
CAT50-ECK4-5.91" 7.323 5.91 8.268 7.323 4.1
CAT50-ECK4-7.87" 9.291 7.87 10.236 9.291 5.0
CAT50-ECK5-5.91" 2.362 7.913 5.91 8.858 7.913 4.8
CAT50-ECK5-7.87" 9.882 7.87 10.827 9.882 6.2
CAT50-ECK5-9.84" 11.850 9.84 12.795 11.850 7.2
CAT50-ECK6-5.91" 3.150 8.504 5.91 9.449 8.504 6.8
CAT50-ECK6-7.87" 10.472 7.87 11.417 10.472 8.7
CAT50-ECK6-9.84" 12.441 9.84 13.386 12.441 10.6
