Product Parameters

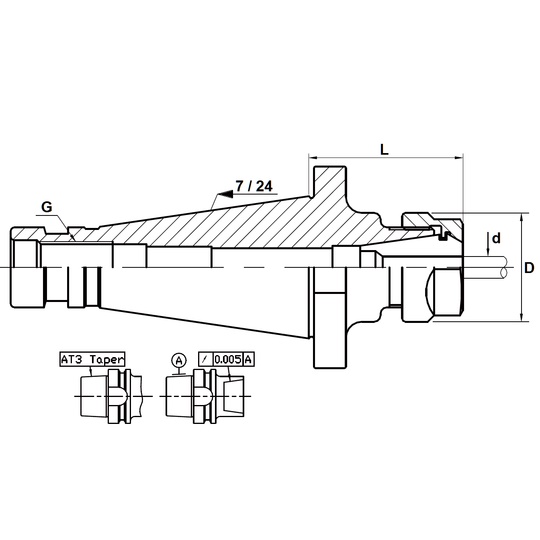

| IMTE No. | Part No. | Ø D | L | Ø d Clamping range |
G Thread |
| IMT200501 | DIN2080-30-ER32-60 | 50 | 60 | 2.0 ~ 20 | M12 |
| IMT200502 | DIN2080-30-ER40-60 | 63 | 60 | 3.0 ~ 26 | M12 |
| IMT200503 | DIN2080-40-ER32-50 | 50 | 50 | 2.0 ~ 20 | M16 |
| IMT200504 | DIN2080-40-ER40-50 | 63 | 50 | 3.0 ~ 26 | M16 |
| IMT200505 | DIN2080-50-ER32-50 | 50 | 50 | 2.0 ~ 20 | M24 |
| IMT200506 | DIN2080-50-ER40-50 | 63 | 50 | 3.0 ~ 26 | M24 |
The above products do not contain spanners, collets and pull studs. Please order them additionally, if necessary.
