Product Parameters

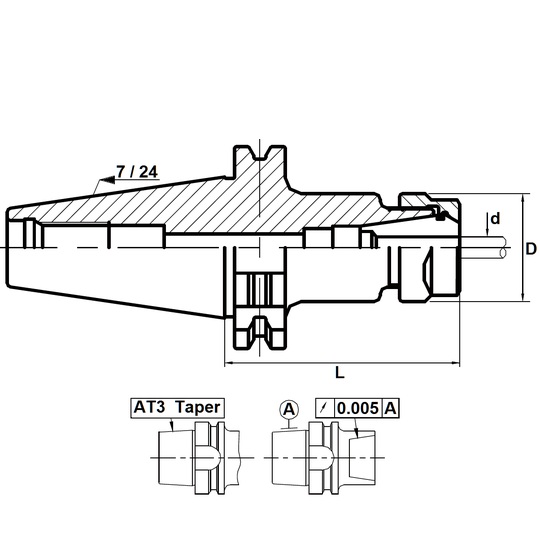

| IMTE No. | Part No. | L | Ø D | Ø d Clamping range |
| IMT101376 | SK40-ER16-60 | 60 | 30 | 2.0 ~ 10 |
| IMT101377 | SK40-ER16-100 | 100 | ||
| IMT101378 | SK40-ER16-150 | 150 | ||
| IMT101379 | SK40-ER20-60 | 60 | 34 | 2.0 ~ 13 |
| IMT101380 | SK40-ER20-100 | 100 | ||
| IMT101381 | SK40-ER20-120 | 120 | ||
| IMT101382 | SK40-ER20-150 | 150 | ||
| IMT101383 | SK40-ER25-60 | 60 | 42 | 2.0 ~ 16 |
| IMT101384 | SK40-ER25-100 | 100 | ||
| IMT101385 | SK40-ER25-150 | 150 | ||
| IMT101386 | SK40-ER32-70 | 70 | 50 | 2.0 ~ 20 |
| IMT101387 | SK40-ER32-100 | 100 | ||
| IMT101388 | SK40-ER32-150 | 150 | ||
| IMT101389 | SK40-ER40-80 | 80 | 63 | 3.0 ~ 26 |
| IMT101390 | SK40-ER40-100 | 100 | ||
| IMT101391 | SK40-ER40-150 | 150 | ||
| IMT101392 | SK50-ER16-60 | 60 | 30 | 2.0 ~ 10 |
| IMT101393 | SK50-ER16-100 | 100 | ||
| IMT101394 | SK50-ER16-150 | 150 | ||
| IMT101395 | SK50-ER20-100 | 100 | 34 | 2.0 ~ 13 |
| IMT101396 | SK50-ER20-150 | 150 | ||
| IMT101397 | SK50-ER25-100 | 100 | 42 | 2.0 ~ 16 |
| IMT101398 | SK50-ER25-150 | 150 | ||
| IMT101399 | SK50-ER32-100 | 100 | 50 | 2.0 ~ 20 |
| IMT101400 | SK50-ER32-150 | 150 | ||
| IMT101401 | SK50-ER32-200 | 200 | ||
| IMT101402 | SK50-ER40-100 | 100 | 63 | 3.0 ~ 26 |
| IMT101403 | SK50-ER40-150 | 150 |
The above models do not contain spanners; collets and pull studs. Please order them additionally if necessary.
