Product Parameters

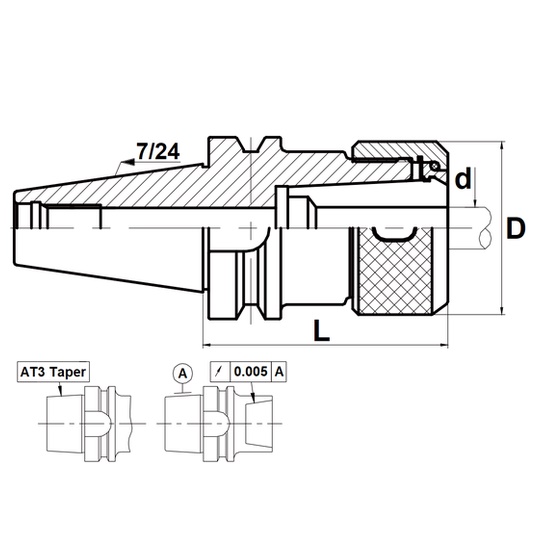

| IMTE No. | Part No. | L | Ø D | d Clamping range |
| IMT200809 | BT30-OZ25-70 | 70 | 60 | 6~25 |
| IMT200810 | BT40-OZ25-80 | 80 | 60 | 6~25 |
| IMT200811 | BT40-OZ25-100 | 100 | 60 | 6~25 |
| IMT200812 | BT40-OZ32-80 | 80 | 78 | 6~32 |
| IMT200813 | BT50-OZ25-90 | 90 | 60 | 6~25 |
| IMT200814 | BT50-OZ25-150 | 150 | 60 | 6~25 |
| IMT200815 | BT50-OZ32-90 | 90 | 78 | 6~32 |
| IMT200816 | BT50-OZ32-150 | 150 | 78 | 6~32 |
- OZ holder inner hole use single-side band 1/10 angle thick wall design; clamping is up to three times more powerful than ordinary ones
- Suitable for rough milling; drilling; reaming; taping and so on because of the extraordinary clamping power; it is especially suitable for rough processing
- The nut that is used with steel ball rolling mechanism; reduce the collet wear; which improves the clamping power
