Product Parameters

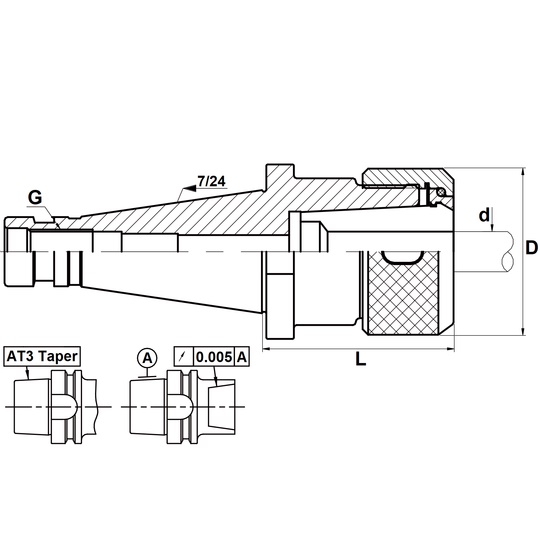

| IMTE No. | Part No. | Ø D | L | Ø d Clamping range |
G Thread |
| IMT200507 | DIN2080-30-OZ25-70 | 60 | 70 | 6.0 ~ 25 | M12 x 1.75 |
| IMT200508 | DIN2080-40-OZ25-70 | 60 | 70 | 6.0 ~ 25 | M16 x 2.0 |
| IMT200509 | DIN2080-40-OZ32-70 | 78 | 70 | 6.0 ~ 32 | M16 x 2.0 |
| IMT200510 | DIN2080-50-OZ25-80 | 60 | 80 | 6.0 ~ 25 | M24 x 3.0 |
| IMT200511 | DIN2080-50-OZ32-80 | 78 | 80 | 6.0 ~ 32 | M24 x 3.0 |
The above products do not contain spanners, collets and pull studs. Please order them additionally, if necessary.
