SIDE MILL HOLDERS SCA TYPE with BT (MAS403) SHANK
SIDE MILL HOLDERS SCA TYPE with BT (MAS403) SHANK

SIDE MILL HOLDERS SCA TYPE with BT (MAS403) SHANK

L30000164

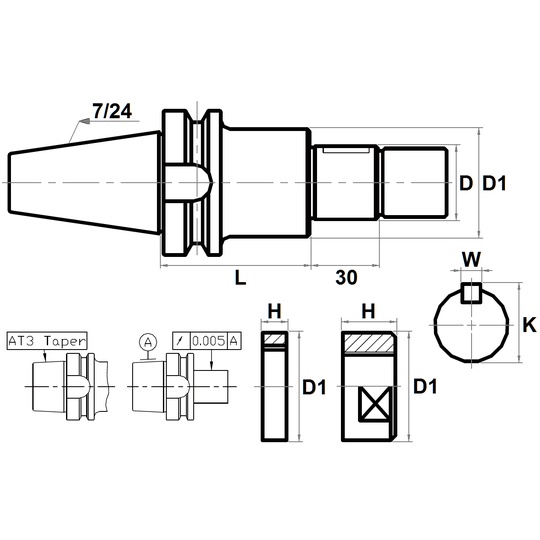

Product Parameters

Part No. Ø D (h6) L Ø D1 H K W
BT40-SCA16-90 16 90 26 5/10/20 17.2 4
BT40-SCA22-75 22 75 34 23.6 6
BT40-SCA22-120 22 120 34 23.6 6
BT40-SCA27-75 27 75 40 29 7
BT40-SCA27-120 27 120 40 29 7
BT40-SCA32-90 32 90 46 34 8
BT40-SCA40-90 40 90 55 42.5 10
BT40-SCA25.4-75 1″ 75 40 27.78 6.35
BT40-SCA25.4-120 1″ 120 40 27.78 6.35
BT50-SCA22-90 22 90 34 5/10/20 23.6 6
BT50-SCA22-135 22 135 34 23.6 6
BT50-SCA27-90 27 90 40 29 7
BT50-SCA27-135 27 135 40 29 7
BT50-SCA32-135 32 135 46 34 8
BT50-SCA25.4-90 1″ 90 40 27.78 6.35
BT50-SCA25.4-135 1″ 135 40 27.78 6.35
Unless otherwise specified, all dimensions are in millimeters

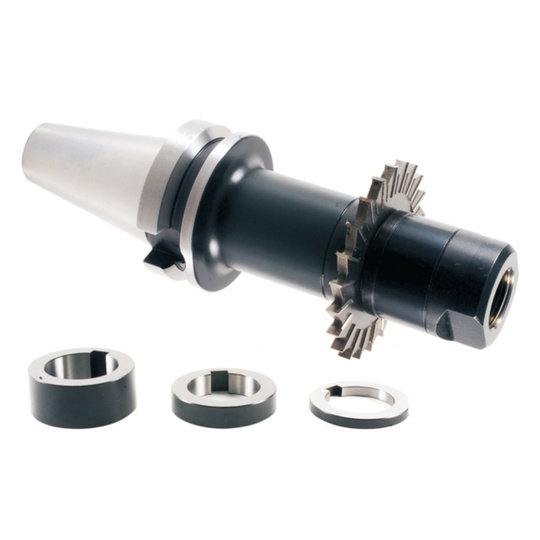

With replacing collars – you can clamp the mill tools of different thickness
