Product Parameters

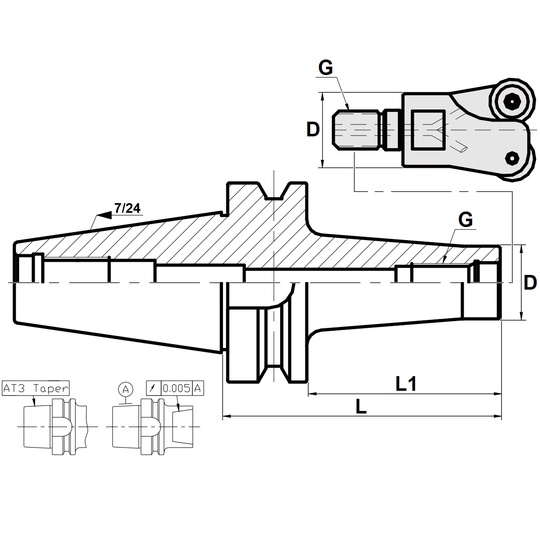

| Part No. | L | L1 | Ø D | G Thread |
| BT40-EM08-80 | 80 | 53 | 13.8 | M8 |
| BT40-EM08-100 | 100 | 73 | ||
| BT40-EM10-80 | 80 | 53 | 18.5 | M10 |
| BT40-EM10-100 | 100 | 73 | ||
| BT40-EM12-80 | 80 | 53 | 23 | M12 |
| BT40-EM12-100 | 100 | 73 | ||
| BT40-EM16-80 | 80 | 53 | 30 | M16 |
| BT40-EM16-100 | 100 | 73 | ||
| BT50-EM08-100 | 100 | 62 | 13.8 | M8 |
| BT50-EM08-150 | 150 | 112 | ||
| BT50-EM10-100 | 100 | 62 | 18.5 | M10 |
| BT50-EM10-150 | 150 | 112 | ||
| BT50-EM12-100 | 100 | 62 | 23 | M12 |
| BT50-EM12-150 | 150 | 112 | ||
| BT50-EM16-100 | 100 | 62 | 30 | M16 |
| BT50-EM16-150 | 150 | 112 |
Unless otherwise specified, all dimensions are in millimeters
Above models do not include the milling cutters. Please order them additionally upon necessity.
