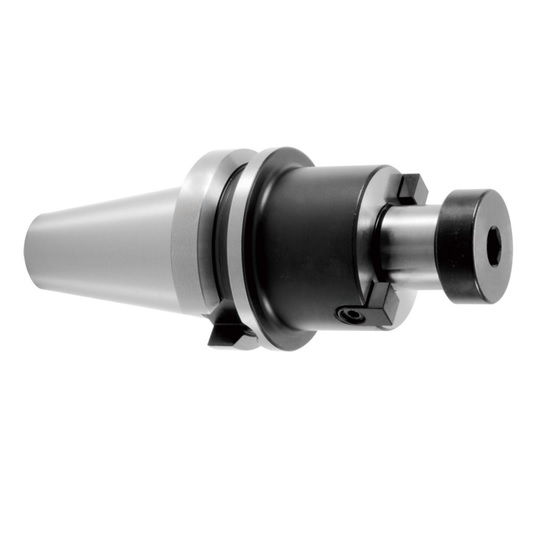

SK50 FACE MILL HOLDER OD=89.3 mm L=75 mm
SK50 FACE MILL HOLDER OD=89.3 mm L=75 mm

SK50 FACE MILL HOLDER OD=89.3 mm L=75 mm

CAD $319.00

SKU: IMT100044

IMT100044 / L30000255

Product Parameters

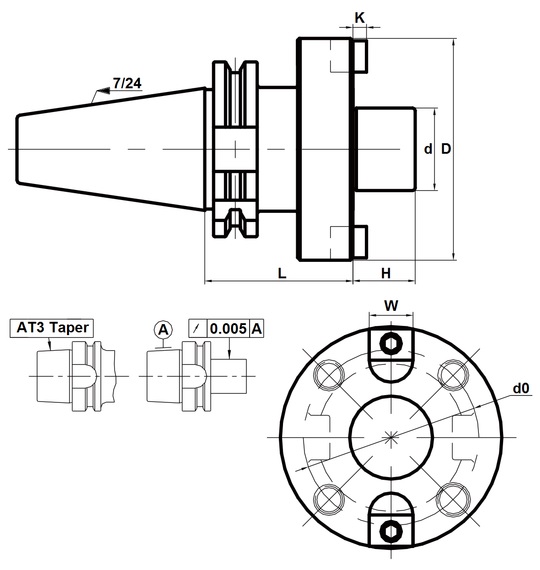

IMTE No. Part No. L Ø d(h6) Ø D Ø d0 H K W
IMT100041 SK40-FMB(C)40F-60 60 40 110 66.7 25 8 16
IMT100042 SK40-FMB(C)40M-60 89.3
IMT100043 SK50-FMB(C)40F-75 75 40 110 66.7 25 8 16
IMT100044 SK50-FMB(C)40M-75 89.3
IMT100045 SK50-FMB(C)60F-75 75 60 140 101.6 25 12.5 25.4
IMT100046 SK50-FMB(C)60M-75 129.1
