Product Parameters

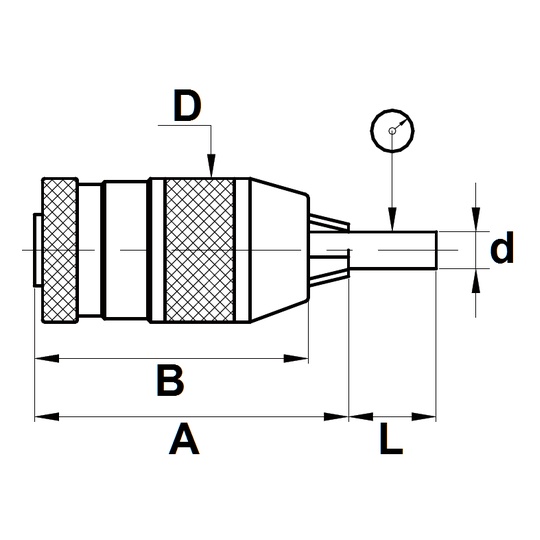

| Part No. | d Clamping Capacity |
Ø D | A | B |
| 6EL-B10 | 0 ~ 8 mm | 34 | 75 | 67 |
| 6EL-B12 | ||||
| 6EL-JT1 | ||||
| 6EL-1/2″-20 | 0 ~ 5/16″ | |||
| 6EL-3/8″-24 |
| Run-out accuracy and Torque inspection | ||||
| Type | Ø d | L | Max Run-out | (kgf/cm) |
| 6EL | 3 | 35 | 0.12 | 60 |
| 6 | ||||
Unless otherwise specified, all dimensions are in millimeters
