HSK100A SIDE-LOCK END MILL HOLDERS with INNER COOLANT
HSK100A SIDE-LOCK END MILL HOLDERS with INNER COOLANT

HSK100A SIDE-LOCK END MILL HOLDERS with INNER COOLANT

L30000478

Product Parameters

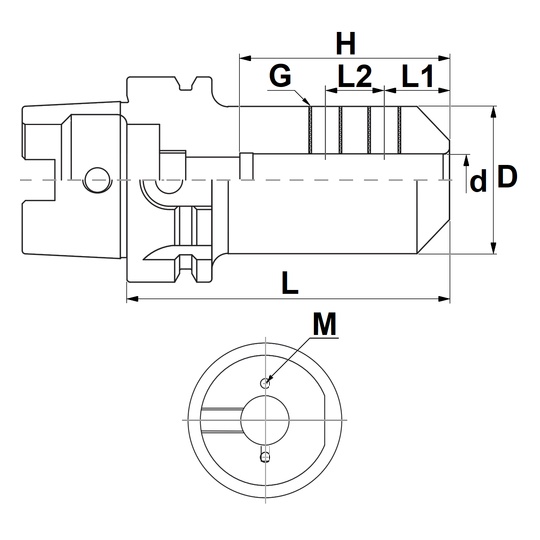

IMTE No. Part No. Ø d Ø D L L1 L2 H M G
Thread
IMT202969 HSK100A-SLC06-080 6 25 80 12 10 28 M4x8 M6 x 1.0P
IMT202970 HSK100A-SLC08-080 8 28 80 14 12 35 M4x8 M8 x 1.25P
IMT202971 HSK100A-SLC10-080 10 35 80 15 14 40 M4x8 M10 x 1.5P
IMT202972 HSK100A-SLC12-080 12 40 80 20 16 45 M4x8 M10 x 1.5P
IMT202973 HSK100A-SLC16-100 16 48 100 22 18 50 M5x8 M10 x 1.5P
IMT202974 HSK100A-SLC20-100 20 52 100 25 20 55 M5x8 M12 x 1.75P
IMT202975 HSK100A-SLC25-100 25 65 100 25 22 60 M5x8 M12 x 1.75P
IMT202976 HSK100A-SLC32-100 32 75 100 30 22 65 M6x8 M16 x 2.0P
IMT202977 HSK100A-SLC40-105 40 80 105 30 22 70 M6x8 M16 x 2.0P
Unless otherwise specified, all dimensions are in millimeters
