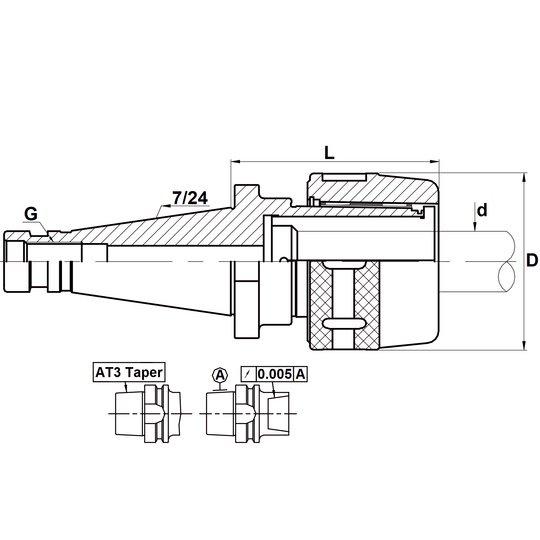

Product Parameters
| IMTE No. | Part No. | Ø D | L | Ø d Clamping range |
G Thread |
| IMT200499 | DIN2080-40-EMC32-90 | 73.5 | 90 | 6 ~ 32 | M16 x 2.0 |
| IMT200500 | DIN2080-50-EMC32-90 | 73.5 | 90 | 6 ~ 32 | M24 x 3.0 |
• The collet and spanner are not included; please order them additionally if necessary.
• The tool package of a whole set is available on request (includes 1 spanner and 7 collets).
• The tool package of a whole set is available on request (includes 1 spanner and 7 collets).
