Product Parameters

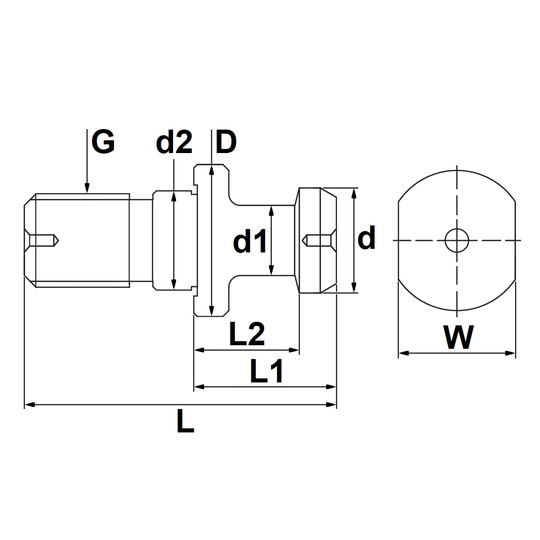

| Part No. | D | d | d1 | d2 | L | L1 | L2 | W | G Thread |
| ISO20-15 | 12 | 9 | 6 | 8.5 | 26 | 12 | 9 | 10 | M8 |
| ISO25-15 | 12 | 10 | 7 | 9 | 32 | 16 | 11.6 | 10 | M8 |
| ISO30-15 | 17 | 13 | 9 | 13 | 45 | 24 | 19 | 14 | M12 |
Unless otherwise specified, all dimensions are in millimeters
PULL STUDS with OUTER COOLANT SUPPLY for ISO TOOL HOLDERS
L30000380
