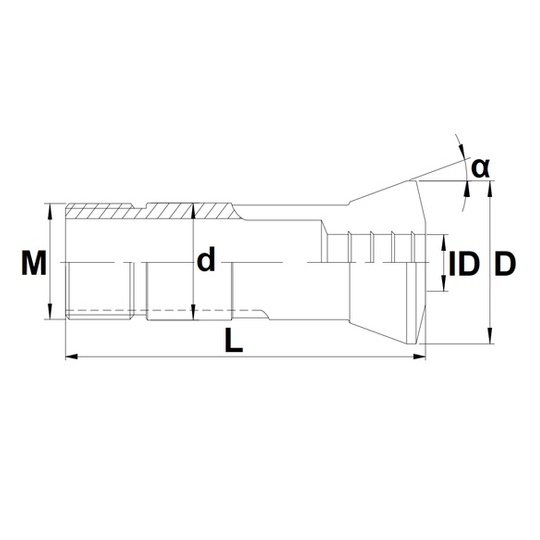

Product Parameters
| Metric size | ||||||||
| Part No. | Material | Ø d (mm) |
L (mm) |
Ø D (mm) |
α | M Thread |
ID Range | ID Shape |
| 5C-1705R | Steel | 31.75 | 88 | 37.3 | 10° | 31.3 x 20f” | 2.0 ~ 25.0 mm (with 0.5 mm increment) |
Round |
| 5C-2705R | Carbide | |||||||
| 5C-1705H | Steel | 31.75 | 88 | 37.3 | 10° | 31.3 x 20f” | 3.0 ~ 21.0 mm (with 1.0 mm increment) |
Hexagon |
| 5C-2705H | Carbide | |||||||
| 5C-1705S | Steel | 31.75 | 88 | 37.3 | 10° | 31.3 x 20f” | 3.0 ~ 17.0 mm (with 1.0 mm increment) |
Square |
| 5C-2705S | Carbide | |||||||
| Imperial size | ||||||||
| Part No. | Material | Ø d (inch) |
L (mm) |
Ø D (inch) |
α | M Thread |
ID Range | ID Shape |
| 5C-1705R | Steel | 1.250″ | 3.465″ | 1.469″ | 10° | 1.238″ x 20f” | 5/64″ ~ 1″ (with 1/64″ increment) |
Round |
| 5C-2705R | Carbide | |||||||
| 5C-1705H | Steel | 1.250″ | 3.465″ | 1.469″ | 10° | 1.238″ x 20f” | 1/8″ ~ 27/32″ (with 1/32″ increment) |
Hexagon |
| 5C-2705H | Carbide | |||||||
| 5C-1705S | Steel | 1.250″ | 3.465″ | 1.469″ | 10° | 1.238″ x 20f” | 1/8″ ~ 1/16″ (with 1/32″ increment) |
Square |
| 5C-2705S | Carbide | |||||||
