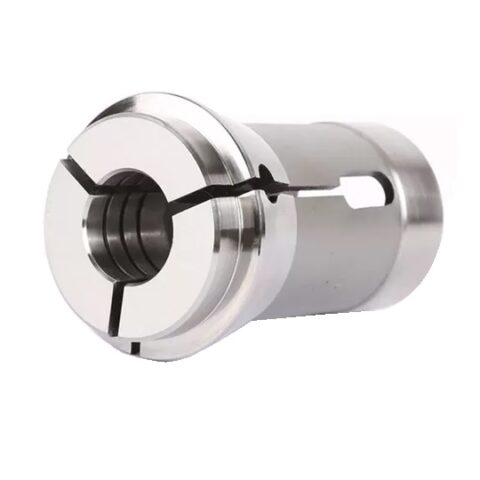

Product Parameters

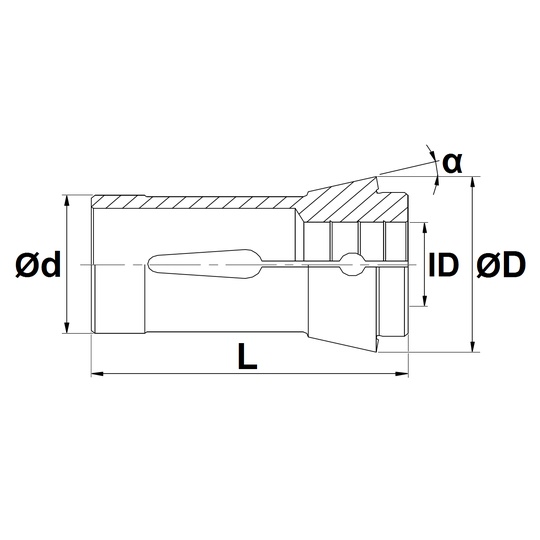

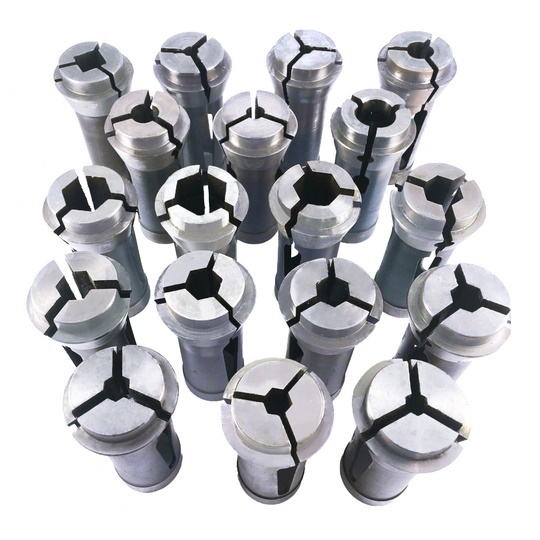

| Metric size | |||||||||
| Part No. | OEM Part No. | Ø d (mm) |
L (mm) |
Ø D (mm) |
α | ID Range | ID Shape | ||
| 140E-1215R | DIN 6343-22 | Schaublin F22/71 | Neukomm 231.002 | 22.0 | 55 | 30.0 | 15° | 1.0 ~ 16.0 mm (0.5 mm incr*) |
Round |
| 140E-1215H | DIN 6343-22 | Schaublin F22/71 | Neukomm 231.002 | 22.0 | 55 | 30.0 | 15° | 3.0 ~ 14.0 mm (1.0 mm incr) |
Hexagonal |
| 140E-1215S | DIN 6343-22 | Schaublin F22/71 | Neukomm 231.002 | 22.0 | 55 | 30.0 | 15° | 3.0 ~ 11.0 mm (1.0 mm incr) |
Square |
| Imperial size | |||||||||
| Part No. | OEM Part No. | Ø d (inch) |
L (inch) |
Ø D (inch) |
α | ID Range | ID Shape | ||
| 140E-1215R | DIN 6343-22 | Schaublin F22/71 | Neukomm 231.002 | 0.866″ | 2.165″ | 1.181″ | 15° | 3/64″ ~ 5/8″ (1/64″ incr) |
Round |
| 140E-1215H | DIN 6343-22 | Schaublin F22/71 | Neukomm 231.002 | 0.866″ | 2.165″ | 1.181″ | 15° | 1/8″ ~ 17/32″ (1/32″ incr) |
Hexagonal |
| 140E-1215S | DIN 6343-22 | Schaublin F22/71 | Neukomm 231.002 | 0.866″ | 2.165″ | 1.181″ | 15° | 1/8″ ~ 7/16″ (1/32″ incr) |
Square |
* incr – increment
