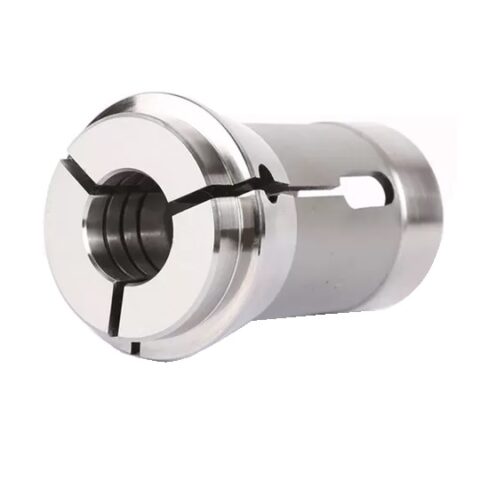

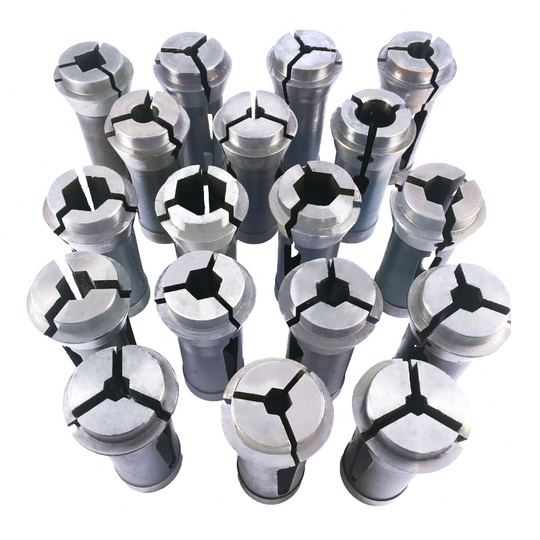

Product Parameters

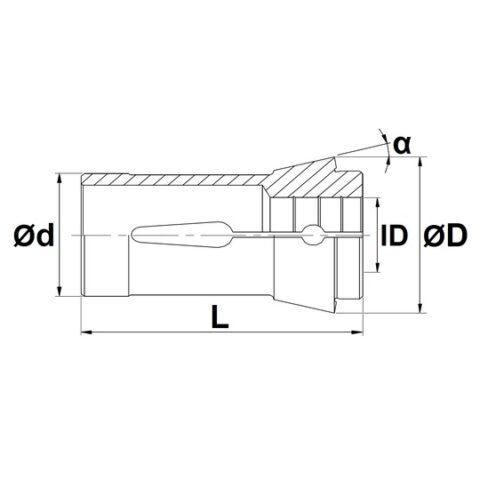

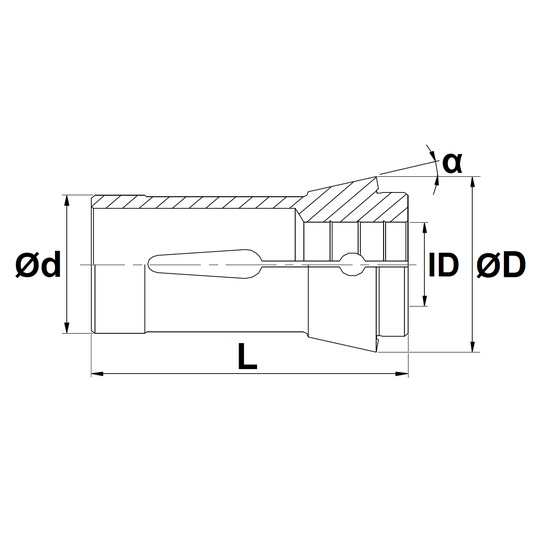

| Metric size | ||||||||
| Part No. | OEM Part No. | Ø d (mm) |
L (mm) |
Ø D (mm) |
α | ID Range | ID Shape | |
| 148E-1220R | Schaublin F28/93 | Neukomm 231.004 | 28.0 | 70 | 38.0 | 15° | 1.0 ~ 21.0 mm (0.5 mm incr*) |
Round |
| 148E-1220H | Schaublin F28/93 | Neukomm 231.004 | 28.0 | 70 | 38.0 | 15° | 3.0 ~ 18.0 mm (1.0 mm incr) |
Hexagonal |
| 148E-1220S | Schaublin F28/93 | Neukomm 231.004 | 28.0 | 70 | 38.0 | 15° | 3.0 ~ 15.0 mm (1.0 mm incr) |
Square |
| Imperial size | ||||||||
| Part No. | OEM Part No. | Ø d (inch) |
L (inch) |
Ø D (inch) |
α | ID Range | ID Shape | |
| 148E-1220R | Schaublin F28/93 | Neukomm 231.004 | 1.102″ | 2.756″ | 1.496″ | 15° | 3/64″ ~ 53/64″ (1/64″ incr) |
Round |
| 148E-1220H | Schaublin F28/93 | Neukomm 231.004 | 1.102″ | 2.756″ | 1.496″ | 15° | 1/8″ ~ 23/32″ (1/32″ incr) |
Hexagonal |
| 148E-1220S | Schaublin F28/93 | Neukomm 231.004 | 1.102″ | 2.756″ | 1.496″ | 15° | 1/8″ ~ 19/32″ (1/32″ incr) |
Square |
* incr – increment
