Product Parameters

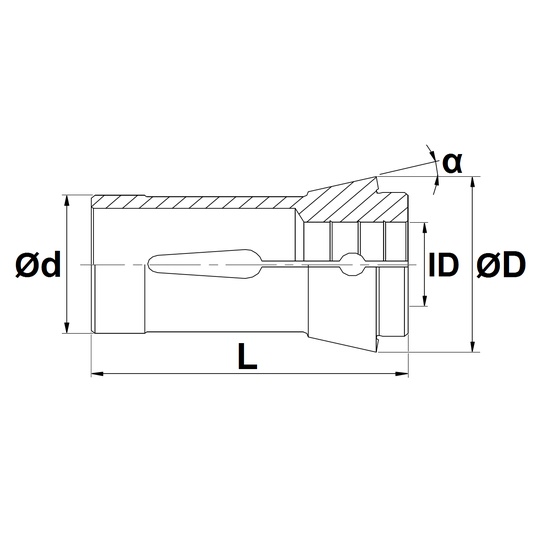

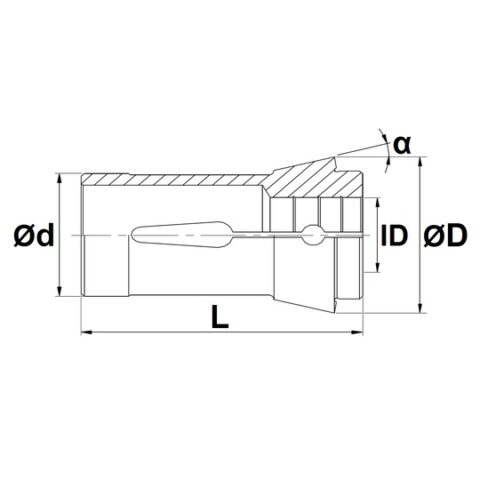

| Metric size | |||||||||
| Part No. | OEM Part No. | Ø d (mm) |
L (mm) |
Ø D (mm) |
α | ID Range | ID Shape | ||
| 161E-1225R | DIN 6343-32 | Schaublin F32/221 | Neukomm 231.005 | 32.0 | 75 | 45.0 | 15° | 1.0 ~ 26.0 mm (0.5 mm incr*) |
Round |
| 161E-1225H | DIN 6343-32 | Schaublin F32/221 | Neukomm 231.005 | 32.0 | 75 | 45.0 | 15° | 3.0 ~ 22.0 mm (1.0 mm incr) |
Hexagonal |
| 161E-1225S | DIN 6343-32 | Schaublin F32/221 | Neukomm 231.005 | 32.0 | 75 | 45.0 | 15° | 3.0 ~ 18.0 mm (1.0 mm incr) |
Square |
| Imperial size | |||||||||
| Part No. | OEM Part No. | Ø d (inch) |
L (inch) |
Ø D (inch) |
α | ID Range | ID Shape | ||
| 161E-1225R | DIN 6343-32 | Schaublin F32/221 | Neukomm 231.005 | 1.259″ | 2.953″ | 1.771″ | 15° | 3/64″ ~ 1″ (1/64″ incr) |
Round |
| 161E-1225H | DIN 6343-32 | Schaublin F32/221 | Neukomm 231.005 | 1.259″ | 2.953″ | 1.771″ | 15° | 1/8″ ~ 7/8″ (1/32″ incr) |
Hexagonal |
| 161E-1225S | DIN 6343-32 | Schaublin F32/221 | Neukomm 231.005 | 1.259″ | 2.953″ | 1.771″ | 15° | 1/8″ ~ 23/32″ (1/32″ incr) |
Square |
* incr – increment
