Product Parameters

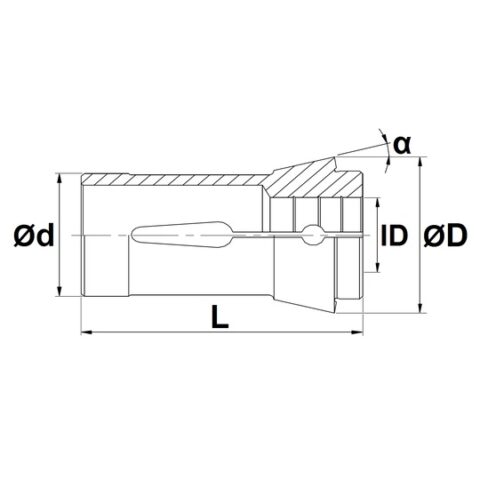

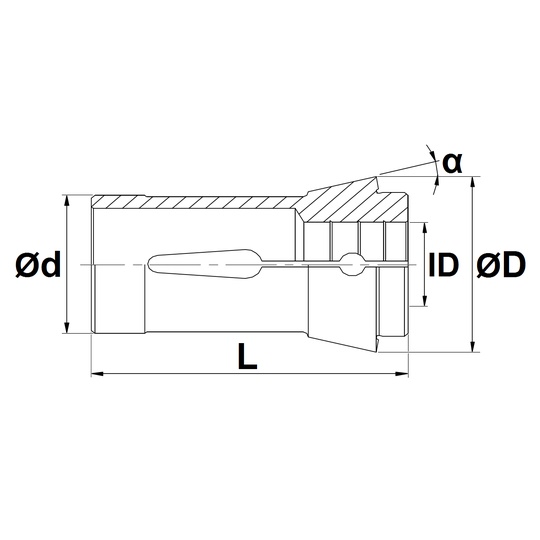

| Metric size | |||||||
| Part No. | OEM Part No. | Ø d (mm) |
L (mm) |
Ø D (mm) |
α | ID Range | ID Shape |
| 162E-1226R | Schaublin F35/67 | 35.0 | 70 | 43.0 | 15° | 2.0 ~ 30.0 mm (0.5 mm incr*) |
Round |
| 162E-1226H | Schaublin F35/67 | 35.0 | 70 | 43.0 | 15° | 3.0 ~ 26.0 mm (1.0 mm incr) |
Hexagonal |
| 162E-1226S | Schaublin F35/67 | 35.0 | 70 | 43.0 | 15° | 3.0 ~ 21.0 mm (1.0 mm incr) |
Square |
| Imperial size | |||||||
| Part No. | OEM Part No. | Ø d (inch) |
L (inch) |
Ø D (inch) |
α | ID Range | ID Shape |
| 162E-1226R | Schaublin F35/67 | 1.378″ | 2.756″ | 1.693″ | 15° | 5/64″ ~ 1-11/64″ (1/64″ incr) |
Round |
| 162E-1226H | Schaublin F35/67 | 1.378″ | 2.756″ | 1.693″ | 15° | 1/8″ ~ 1″ (1/32″ incr) |
Hexagonal |
| 162E-1226S | Schaublin F35/67 | 1.378″ | 2.756″ | 1.693″ | 15° | 1/8″ ~ 13/16″ (1/32″ incr) |
Square |
* incr – increment
