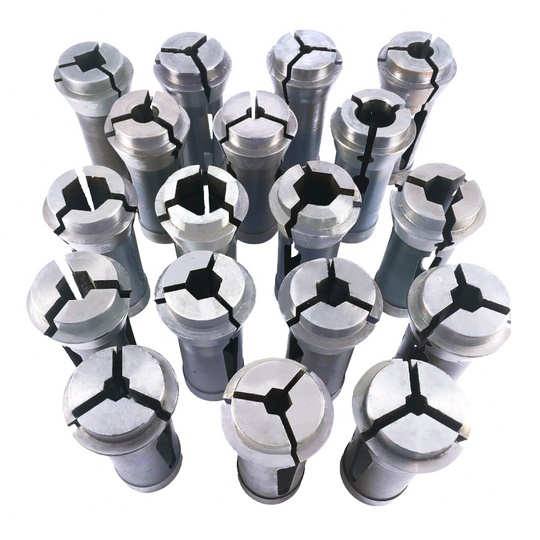

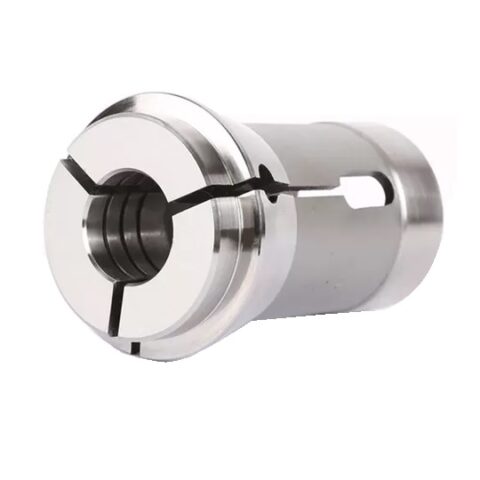

Product Parameters

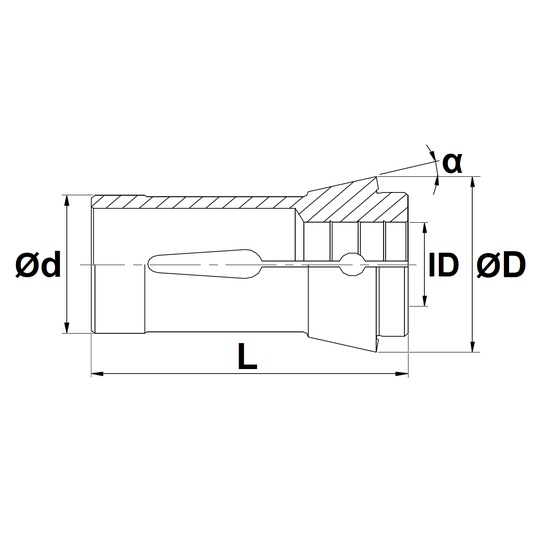

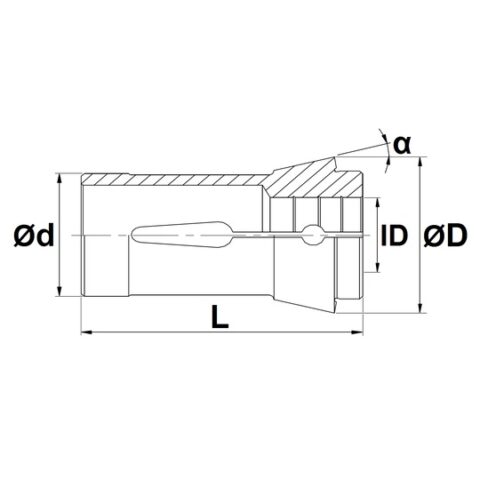

| Metric size | ||||||||
| Part No. | OEM Part No. | Ø d (mm) |
L (mm) |
Ø D (mm) |
α | ID Range | ID Shape | |
| 163E-1230R | DIN 6343-35 | Schaublin F35/94 | 35.0 | 80 | 48.0 | 15° | 2.0 ~ 30.0 mm (0.5 mm incr*) |
Round |
| 163E-1230H | DIN 6343-35 | Schaublin F35/94 | 35.0 | 80 | 48.0 | 15° | 3.0 ~ 26.0 mm (1.0 mm incr) |
Hexagonal |
| 163E-1230S | DIN 6343-35 | Schaublin F35/94 | 35.0 | 80 | 48.0 | 15° | 3.0 ~ 21.0 mm (1.0 mm incr) |
Square |
| Imperial size | ||||||||
| Part No. | OEM Part No. | Ø d (inch) |
L (inch) |
Ø D (inch) |
α | ID Range | ID Shape | |
| 163E-1230R | DIN 6343-35 | Schaublin F35/94 | 1.378″ | 3.150″ | 1.890″ | 15° | 5/64″ ~ 1-11/64″ (1/64″ incr) |
Round |
| 163E-1230H | DIN 6343-35 | Schaublin F35/94 | 1.378″ | 3.150″ | 1.890″ | 15° | 1/8″ ~ 1″ (1/32″ incr) |
Hexagonal |
| 163E-1230S | DIN 6343-35 | Schaublin F35/94 | 1.378″ | 3.150″ | 1.890″ | 15° | 1/8″ ~ 13/16″ (1/32″ incr) |
Square |
* incr – increment
