Product Parameters

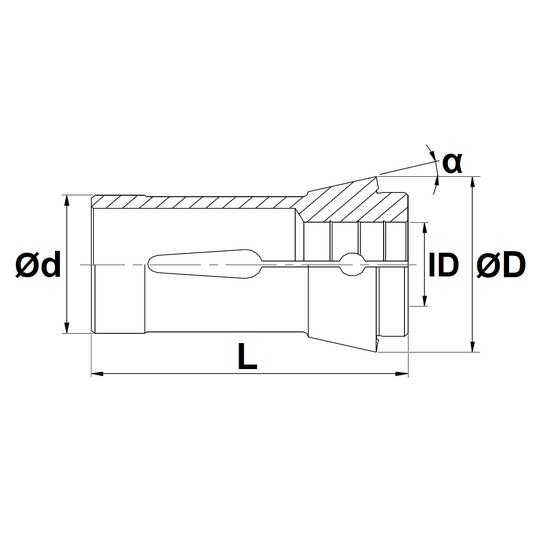

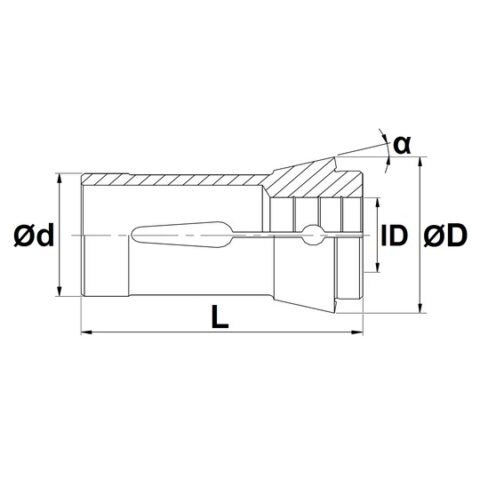

| Metric size | |||||||||
| Part No. | OEM Part No. | Ø d (mm) |
L (mm) |
Ø D (mm) |
α | ID Range | ID Shape | ||
| 173E-1242R | DIN 6343-48 | Schaublin F48/81 | Neukomm 231.009 | 48.0 | 94 | 60.0 | 15° | 2.0 ~ 42.0 mm (0.5 mm incr*) |
Round |
| 173E-1242H | DIN 6343-48 | Schaublin F48/81 | Neukomm 231.009 | 48.0 | 94 | 60.0 | 15° | 3.0 ~ 36.0 mm (1.0 mm incr) |
Hexagonal |
| 173E-1242S | DIN 6343-48 | Schaublin F48/81 | Neukomm 231.009 | 48.0 | 94 | 60.0 | 15° | 3.0 ~ 29.0 mm (1.0 mm incr) |
Square |
| Imperial size | |||||||||
| Part No. | OEM Part No. | Ø d (inch) |
L (inch) |
Ø D (inch) |
α | ID Range | ID Shape | ||
| 173E-1242R | DIN 6343-48 | Schaublin F48/81 | Neukomm 231.009 | 1.889″ | 3.700″ | 2.362″ | 15° | 5/64″ ~ 1-41/64″ (1/64″ incr) |
Round |
| 173E-1242H | DIN 6343-48 | Schaublin F48/81 | Neukomm 231.009 | 1.889″ | 3.700″ | 2.362″ | 15° | 1/8″ ~ 1-13/32″ (1/32″ incr) |
Hexagonal |
| 173E-1242S | DIN 6343-48 | Schaublin F48/81 | Neukomm 231.009 | 1.889″ | 3.700″ | 2.362″ | 15° | 1/8″ ~ 1-5/32″ (1/32″ incr) |
Square |
* incr – increment
