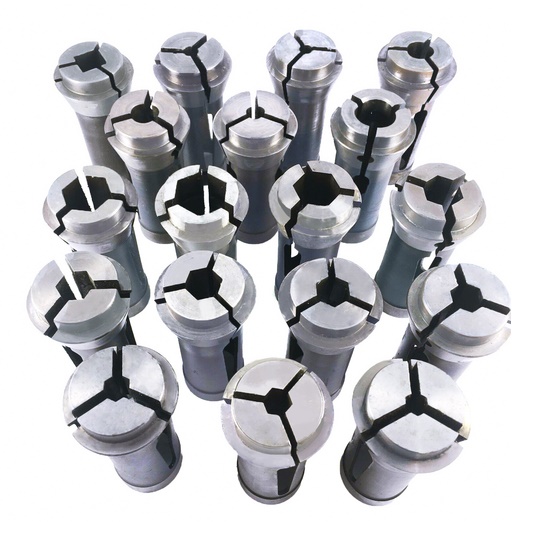

Product Parameters

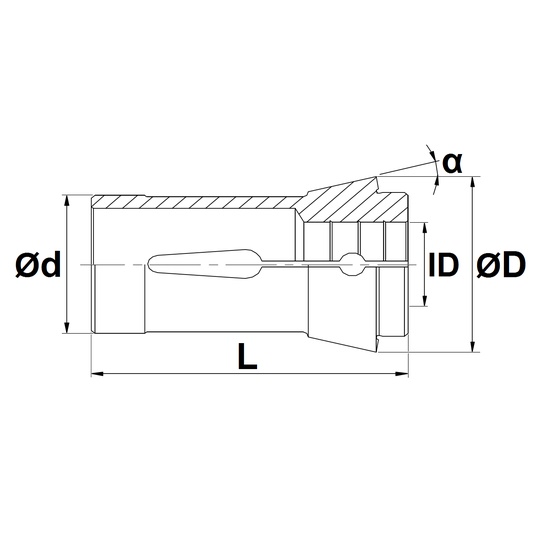

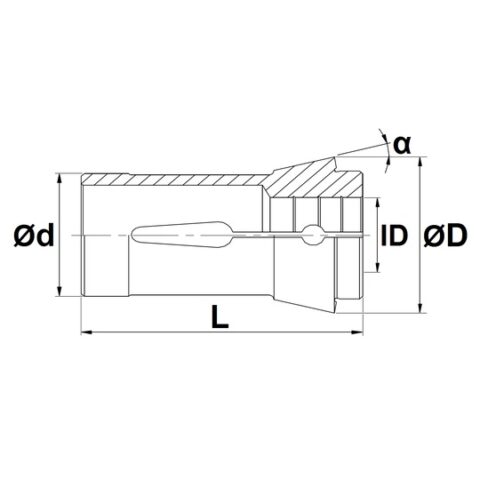

| Metric size | ||||||
| Part No. | d (mm) |
L (mm) |
D (mm) |
α | ID Range | ID Shape |
| 177E-1252R | ø 58.0 | 94 | ø 70.0 | 15° | 3.0 ~ 52.0 mm (with 0.5 mm increment) | Round |
| 177E-1252H | ø 58.0 | 94 | ø 70.0 | 15° | 5.0 ~ 45.0 mm (with 1.0 mm increment) | Hexagonal |
| 177E-1252S | ø 58.0 | 94 | ø 70.0 | 15° | 5.0 ~ 36.0 mm (with 1.0 mm increment) | Square |
| Imperial size | ||||||
| Part No. | d (inch) |
L (inch) |
D (inch) |
α | ID Range | ID Shape |
| 177E-1252R | ø 2.282″ | 3.700″ | ø 2.756″ | 15° | 1/8″ ~ 2″ (with 1/64″ increment) | Round |
| 177E-1252H | ø 2.282″ | 3.700″ | ø 2.756″ | 15° | 3/16″ ~ 1-3/4″ (with 1/32″ increment) | Hexagonal |
| 177E-1252S | ø 2.282″ | 3.700″ | ø 2.756″ | 15° | 3/16″ ~ 1-13/32″ (with 1/32″ increment) | Square |
