Product Parameters

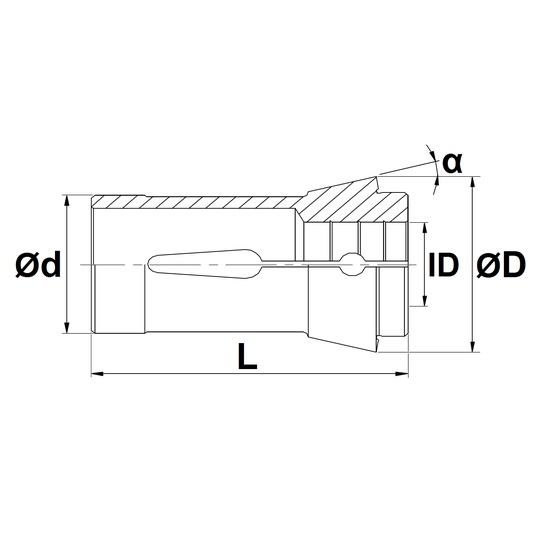

| Metric size | |||||||||
| Part No. | OEM Part No. | Ø d (mm) |
L (mm) |
Ø D (mm) |
α | ID Range | ID Shape | ||
| 185E-1261R | DIN 6343-60 | Schaublin F66/359 | Neukomm 231.001 | 66.0 | 110 | 84.0 | 15° | 3.0 ~ 60.0 mm (0.5 mm incr*) |
Round |
| 185E-1261H | DIN 6343-60 | Schaublin F66/359 | Neukomm 231.001 | 66.0 | 110 | 84.0 | 15° | 5.0 ~ 51.0 mm (1.0 mm incr) |
Hexagonal |
| 185E-1261S | DIN 6343-60 | Schaublin F66/359 | Neukomm 231.001 | 66.0 | 110 | 84.0 | 15° | 5.0 ~ 42.0 mm (1.0 mm incr) |
Square |
| Imperial size | |||||||||
| Part No. | OEM Part No. | Ø d (inch) |
L (inch) |
Ø D (inch) |
α | ID Range | ID Shape | ||
| 185E-1261R | DIN 6343-60 | Schaublin F66/359 | Neukomm 231.001 | 2.598″ | 4.330″ | 3.307″ | 15° | 1/8″ ~ 2-23/64″ (1/64″ incr) |
Round |
| 185E-1261H | DIN 6343-60 | Schaublin F66/359 | Neukomm 231.001 | 2.598″ | 4.330″ | 3.307″ | 15° | 3/16″ ~ 2″ (1/32″ incr) |
Hexagonal |
| 185E-1261S | DIN 6343-60 | Schaublin F66/359 | Neukomm 231.001 | 2.598″ | 4.330″ | 3.307″ | 15° | 3/16″ ~ 1-21/32″ (1/32″ incr) |
Square |
* incr – increment
