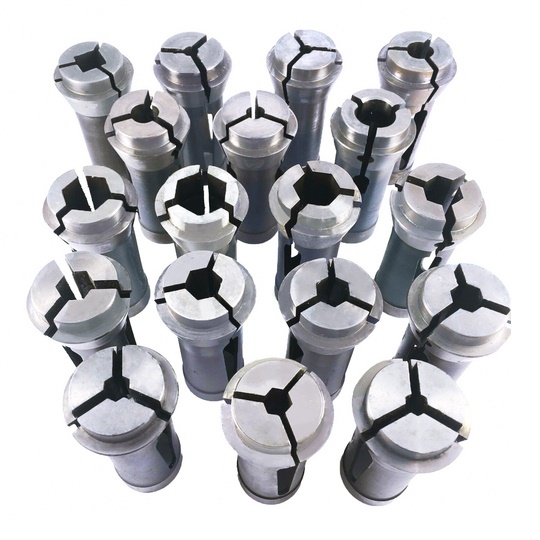

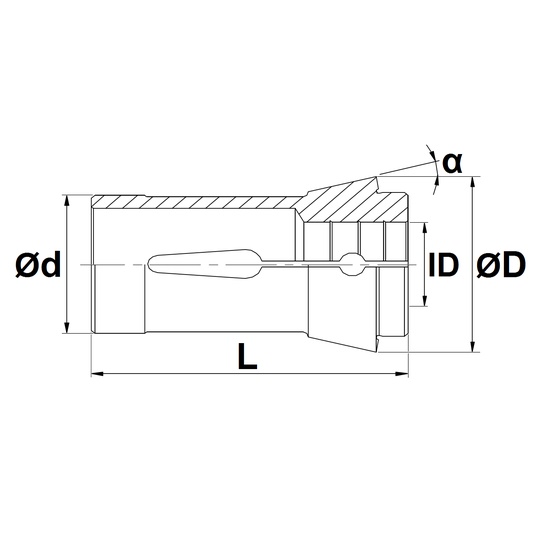

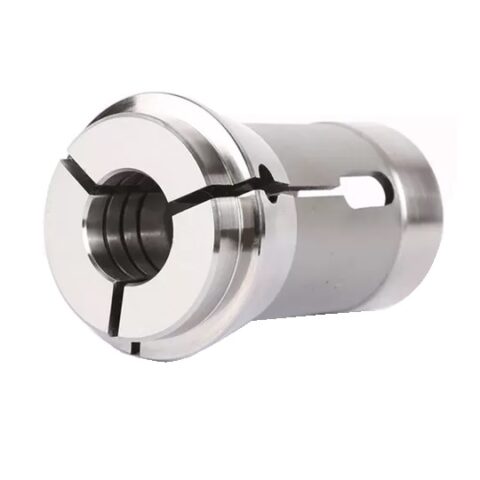

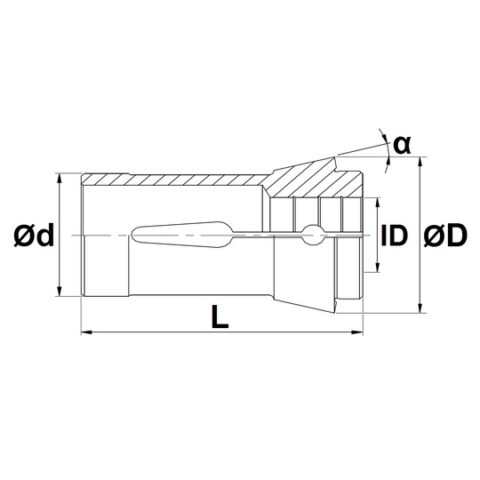

Product Parameters
| Metric size | |||||||
| Part No. | OEM Part No. | Ø d (mm) |
L (mm) |
Ø D (mm) |
α | ID Range | ID Shape |
| 193E-1280R | DIN 6343-80 | 90.0 | 130 | 107.0 | 15° | 6.0 ~ 80.0 mm (with 0.5 mm incr*) |
Round |
| 193E-1280H | DIN 6343-80 | 90.0 | 130 | 107.0 | 15° | 6.0 ~ 69.0 mm (with 1.0 mm incr) |
Hexagonal |
| 193E-1280S | DIN 6343-80 | 90.0 | 130 | 107.0 | 15° | 6.0 ~ 56.0 mm (with 1.0 mm incr) |
Square |
| Imperial size | |||||||
| Part No. | OEM Part No. | Ø d (inch) |
L (inch) |
Ø D (inch) |
α | ID Range | ID Shape |
| 193E-1280R | DIN 6343-80 | 3.543″ | 5.118″ | 4.212″ | 15° | 1/4″ ~ 3-9/64″ (with 1/64″ incr) |
Round |
| 193E-1280H | DIN 6343-80 | 3.543″ | 5.118″ | 4.212″ | 15° | 1/4″ ~ 2-23/32″ (with 1/32″ incr) |
Hexagonal |
| 193E-1280S | DIN 6343-80 | 3.543″ | 5.118″ | 4.212″ | 15° | 1/4″ ~ 2-7/32″ (with 1/32″ incr) |
Square |
* incr – increment
