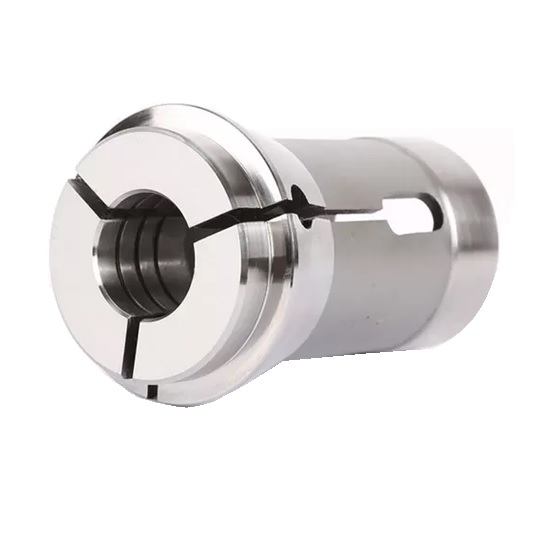

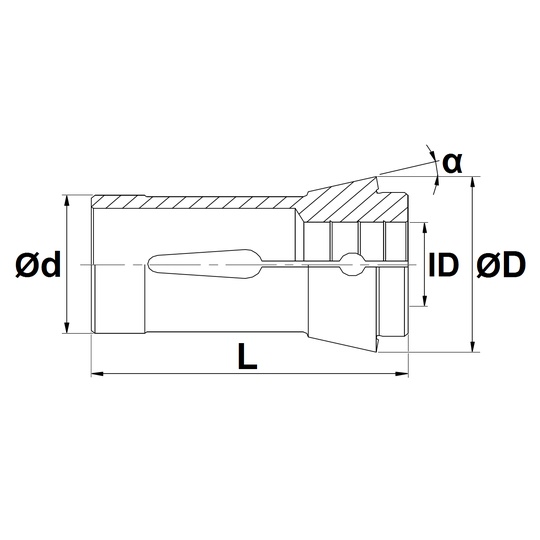

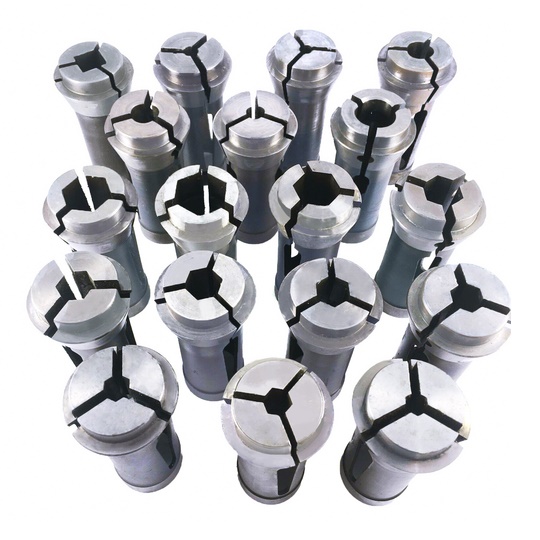

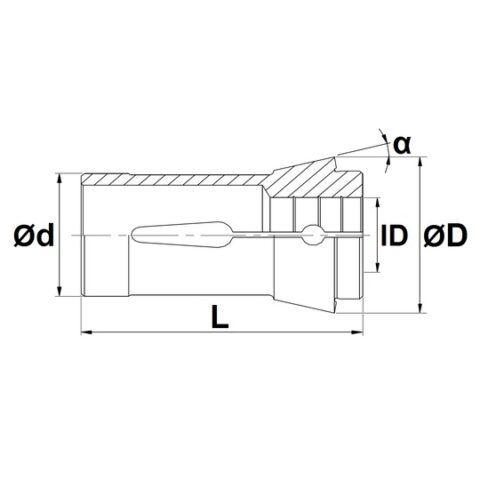

Product Parameters
| Metric size | ||||||
| Part No. | Ø d (mm) |
L (mm) |
Ø D (mm) |
α | ID Range | ID Shape |
| C32-1332R | 40.0 | 104 | 54.5 | 18° | 2.0 ~ 32.0 mm (with 0.5 mm increment) |
Round |
| C32-1332H | 40.0 | 104 | 54.5 | 18° | 3.0 ~ 27.0 mm (with 1.0 mm increment) |
Hexagonal |
| C32-1332S | 40.0 | 104 | 54.5 | 18° | 3.0 ~ 22.0 mm (with 1.0 mm increment) |
Square |
| Imperial size | ||||||
| Part No. | Ø d (inch) |
L (inch) |
Ø D (inch) |
α | ID Range | ID Shape |
| C32-1332R | 1.574″ | 4.094″ | 2.145″ | 18° | 5/64″ ~ 1-1/4″ (with 1/64″ increment) |
Round |
| C32-1332H | 1.574″ | 4.094″ | 2.145″ | 18° | 1/8″ ~ 1-1/16″ (with 1/32″ increment) |
Hexagonal |
| C32-1332S | 1.574″ | 4.094″ | 2.145″ | 18° | 1/8″ ~ 7/8″ (with 1/32″ increment) |
Square |
