Product Parameters

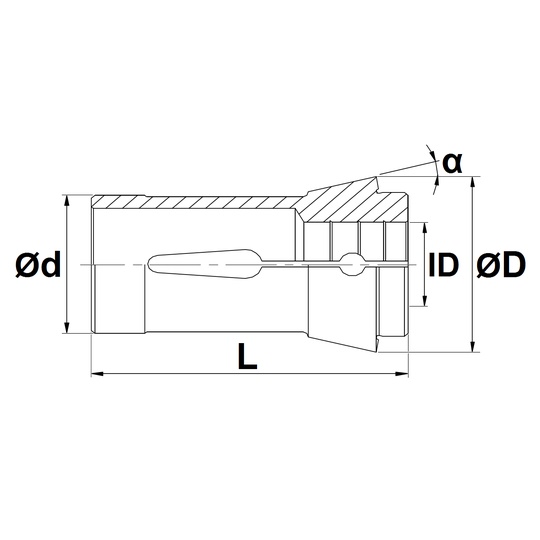

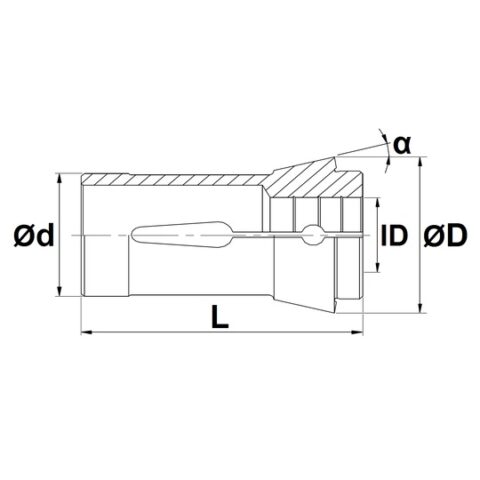

| Metric size | ||||||
| Part No. | Ø d (mm) |
L (mm) |
Ø D (mm) |
α | ID Range | ID Shape |
| C44-1342R | 54.0 | 87 | 68.0 | 19° | 2.0 ~ 44.0 mm (with 0.5 mm increment) |
Round |
| C44-1342H | 54.0 | 87 | 68.0 | 19° | 3.0 ~ 38.0 mm (with 1.0 mm increment) |
Hexagonal |
| C44-1342S | 54.0 | 87 | 68.0 | 19° | 3.0 ~ 31.0 mm (with 1.0 mm increment) |
Square |
| Imperial size | ||||||
| Part No. | Ø d (inch) |
L (inch) |
Ø D (inch) |
α | ID Range | ID Shape |
| C44-1342R | 2.125″ | 3.425″ | 2.677″ | 19° | 5/64″ ~ 1-47/64″ (with 1/64″ increment) |
Round |
| C44-1342H | 2.125″ | 3.425″ | 2.677″ | 19° | 1/8″ ~ 1-15/32″ (with 1/32″ increment) |
Hexagonal |
| C44-1342S | 2.125″ | 3.425″ | 2.677″ | 19° | 1/8″ ~ 1-7/32″ (with 1/32″ increment) |
Square |
