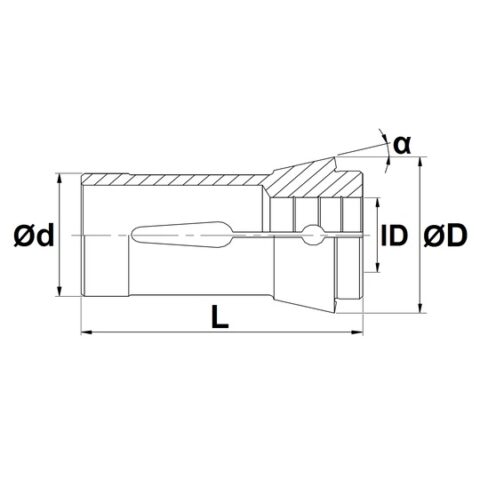

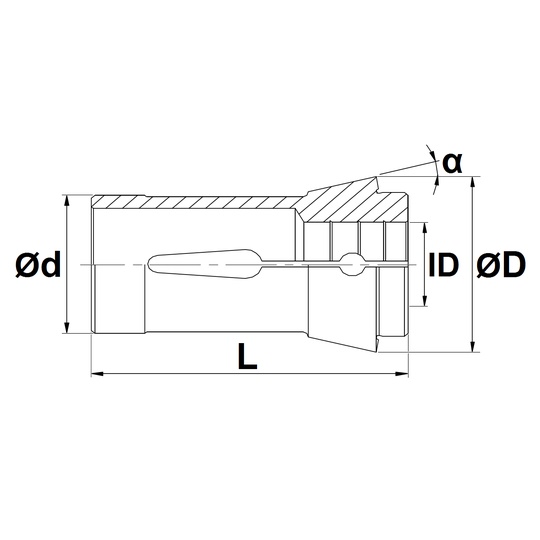

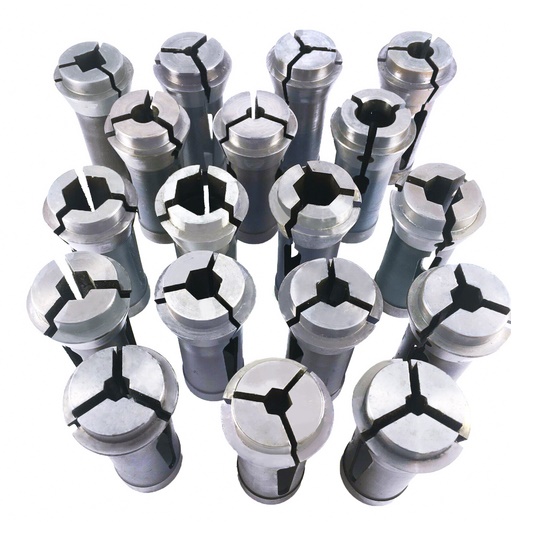

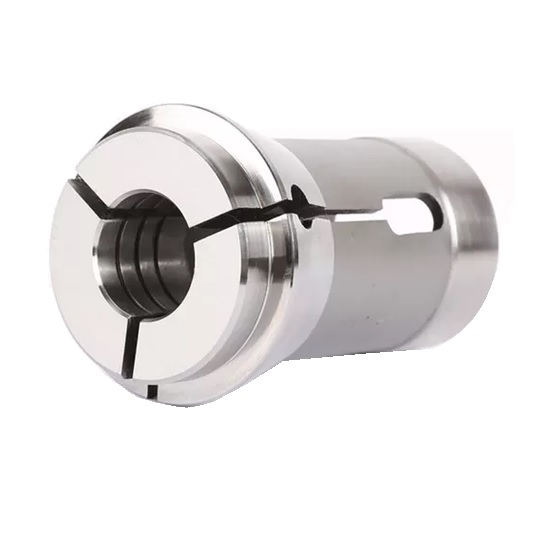

Product Parameters
| Metric size | ||||||
| Part No. | Ø d (mm) |
L (mm) |
Ø D (mm) |
α | ID Range | ID Shape |
| JCL50-1350R | 60.0 | 89 | 72.0 | 16° | 3.0 ~ 52.0 mm (with 0.5 mm increment) |
Round |
| JCL50-1350H | 60.0 | 89 | 72.0 | 16° | 5.0 ~ 45.0 mm (with 1.0 mm increment) |
Hexagonal |
| JCL50-1350S | 60.0 | 89 | 72.0 | 16° | 5.0 ~ 36.0 mm (with 1.0 mm increment) |
Square |
| Imperial size | ||||||
| Part No. | Ø d (inch) |
L (inch) |
Ø D (inch) |
α | ID Range | ID Shape |
| JCL50-1350R | 2.362″ | 3.504″ | 2.835″ | 16° | 1/8″ ~ 2″ (with 1/64″ increment) |
Round |
| JCL50-1350H | 2.362″ | 3.504″ | 2.835″ | 16° | 3/16″ ~ 1-3/4″ (with 1/32″ increment) |
Hexagonal |
| JCL50-1350S | 2.362″ | 3.504″ | 2.835″ | 16° | 3/16″ ~ 1-13/32″ (with 1/32″ increment) |
Square |
