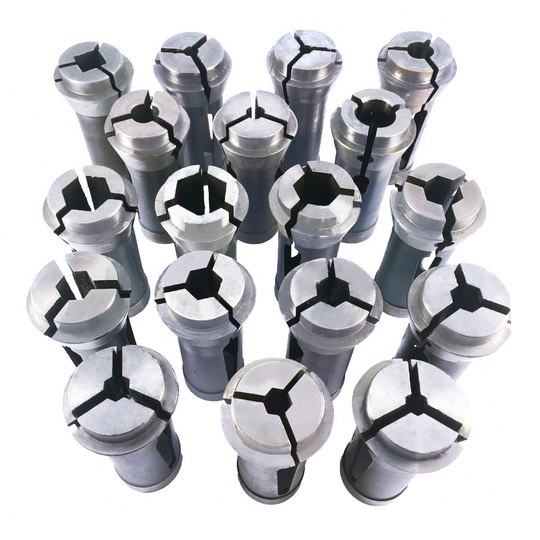

Product Parameters
| Metric size | ||||||
| Part No. | Ø d (mm) |
L (mm) |
Ø D (mm) |
α | ID Range | ID Shape |
| TNS-1240R | 46.0 | 65 | 55.0 | 15° | 2.0 ~ 40.0 mm (with 0.5 mm increment) |
Round |
| TNS-1240H | 46.0 | 65 | 55.0 | 15° | 3.0 ~ 34.0 mm (with 1.0 mm increment) |
Hexagonal |
| TNS-1240S | 46.0 | 65 | 55.0 | 15° | 3.0 ~ 28.0 mm (with 1.0 mm increment) |
Square |
| Imperial size | ||||||
| Part No. | Ø d (inch) |
L (inch) |
Ø D (inch) |
α | ID Range | ID Shape |
| TNS-1240R | 1.810″ | 2.559″ | 2.165″ | 15° | 5/64″ ~ 1-37/64″ (with 1/64″ increment) |
Round |
| TNS-1240H | 1.810″ | 2.559″ | 2.165″ | 15° | 1/8″ ~ 1-11/32″ (with 1/32″ increment) |
Hexagonal |
| TNS-1240S | 1.810″ | 2.559″ | 2.165″ | 15° | 1/8″ ~ 1-3/32″ (with 1/32″ increment) |
Square |
