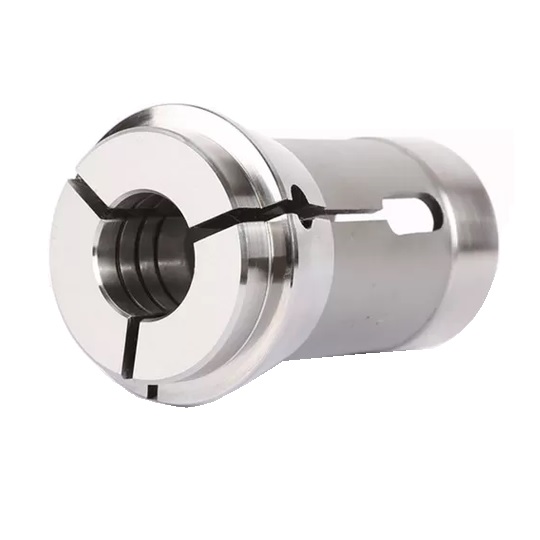

Product Parameters

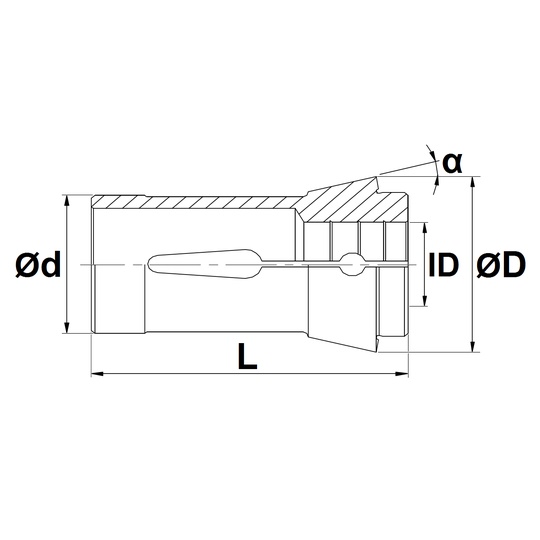

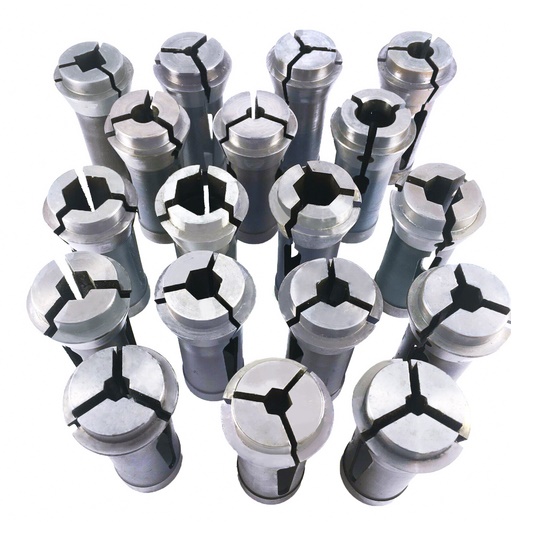

| Metric size | ||||||
| Part No. | Ø d (mm) |
L (mm) |
Ø D (mm) |
α | ID Range | ID Shape |
| BNC34-1734R | 44.4 | 108 | 54.2 | 15° | 2.0 ~ 36.0 mm (with 0.5 mm increment) |
Round |
| BNC34-1734H | 44.4 | 108 | 54.2 | 15° | 3.0 ~ 31.0 mm (with 1.0 mm increment) |
Hexagonal |
| BNC34-1734S | 44.4 | 108 | 54.2 | 15° | 3.0 ~ 25.0 mm (with 1.0 mm increment) |
Square |
| Imperial size | ||||||
| Part No. | Ø d (inch) |
L (inch) |
Ø D (inch) |
α | ID Range | ID Shape |
| BNC34-1734R | 1.747″ | 4.252″ | 2.133″ | 15° | 5/64″ ~ 1-13/32″ (with 1/64″ increment) |
Round |
| BNC34-1734H | 1.747″ | 4.252″ | 2.133″ | 15° | 1/8″ ~ 1-7/32″ (with 1/32″ increment) |
Hexagonal |
| BNC34-1734S | 1.747″ | 4.252″ | 2.133″ | 15° | 1/8″ ~ 31/32″ (with 1/32″ increment) |
Square |
