Product Parameters

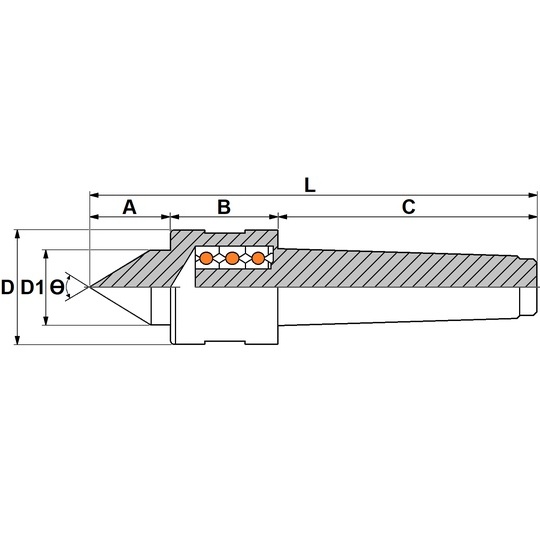

| IMTE No. | Part No. | A | B | C | D | D1 | L | Accuracy | Max.Speed R.P.M |
θ Angle |
| IMT202600 | PC-MT.1 | 21 | 31 | 56 | 32 | 16 | 108 | 0.005 | 4500 | 60° |
| IMT202601 | PC-MT.2 | 26 | 37 | 69 | 40 | 22 | 132 | 3500 | ||
| IMT202602 | PC-MT.3 | 32 | 46 | 86 | 45 | 26 | 164 | 3000 | ||
| IMT202603 | PC-MT.4 | 34 | 46 | 108 | 48 | 30 | 188 | 2500 | ||
| IMT202604 | PC-MT.5 | 50 | 62 | 136 | 68 | 45 | 248 | 2000 |
Unless otherwise specified, all dimensions are in millimeters
