Product Parameters

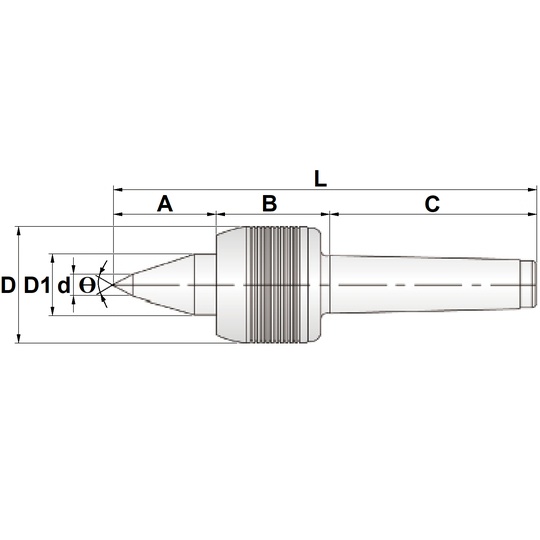

| IMTE No. | Part No. | Morse Taper | A | B | C | D | D1 | d | L | Accuracy | Max.Speed R.P.M |
θ Angle |
| IMT202556 | NCF-MT.3B | MT#3 | 52 | 50 | 86 | 53 | 30 | 10 | 188 | 0.003 | 6000 | 60° |
| IMT202557 | NCF-MT.4B | MT#4 | 55 | 60 | 108 | 68 | 32 | 12 | 223 | 0.003 | 5500 | 60° |
| IMT202558 | NCF-MT.5B | MT#5 | 67 | 70 | 136 | 87 | 40 | 14 | 273 | 0.003 | 4000 | 60° |
Unless otherwise specified, all dimensions are in millimeters
