Product Parameters

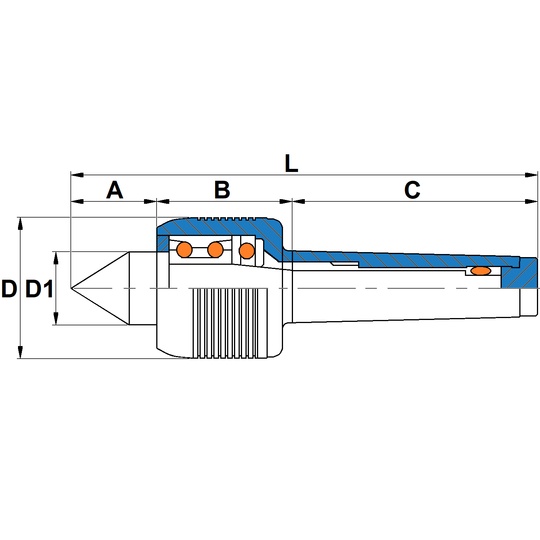

| IMTE No. | Part No. | Morse Taper | A | B | C | D | D1 | L | Accuracy | Max.Speed R.P.M |
θ Angle |
| IMT202561 | NC-MT.4A | MT#4 | 44 | 55 | 108 | 53 | 30 | 207 | 0.003 | 6500 | 60° |
| IMT202562 | NC-MT.5A | MT#5 | 55 | 61 | 136 | 68 | 35 | 245 | 0.003 | 5000 | 60° |
Unless otherwise specified, all dimensions are in millimeters
