Product Parameters

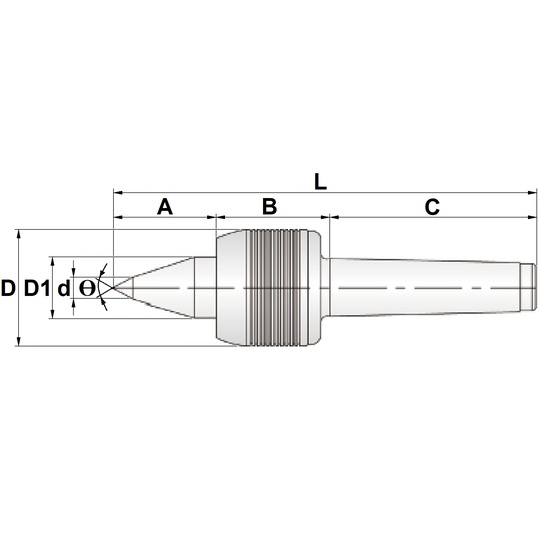

| IMTE No. | Part No. | Morse Taper | A | B | C | D | D1 | d | L | Accuracy | Max.Speed R.P.M |
θ Angle |
| IMT202563 | NC-MT.4B | MT#4 | 52 | 55 | 108 | 53 | 30 | 12 | 215 | 0.003 | 6500 | 60° |
| IMT202564 | NC-MT.5B | MT#5 | 58 | 61 | 136 | 68 | 35 | 14 | 255 | 0.003 | 5000 | 60° |
Unless otherwise specified, all dimensions are in millimeters
