Product Parameters

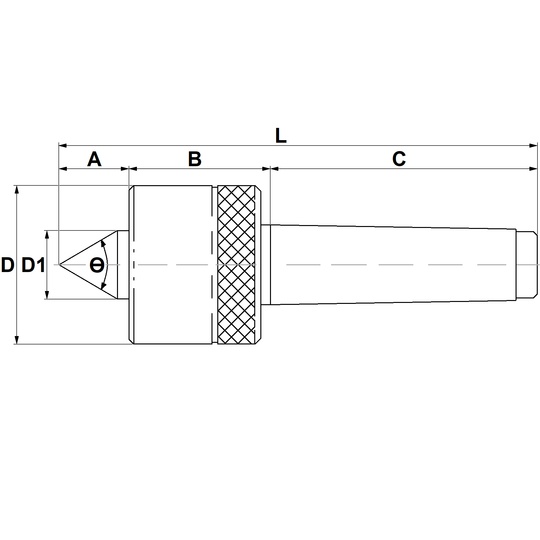

| IMTE No. | Part No. | Morse Taper MT / MK |
A | B | C | D | D1 | L | Accuracy | Max.Speed R.P.M |
θ Angle |
| IMT202567 | SW-MT.5 | MT#5 | 52 | 82 | 135 | 98 | 50 | 269 | 0.005 | 1800 | 60° |
| IMT202568 | SW-MT.6 | MT#6 | 84 | 115 | 190 | 155 | 70 | 389 | 0.008 | 1000 | 60° |
| IMT202569 | SW-MT.7 | MT#7 | 106 | 127 | 260 | 196 | 90 | 493 | 0.008 | 1000 | 60° |
| IMT202570 | SW-MT.8 | MT#8 | 106 | 127 | 200 | 196 | 90 | 433 | 0.008 | 1000 | 60° |
Unless otherwise specified, all dimensions are in millimeters
