Product Parameters

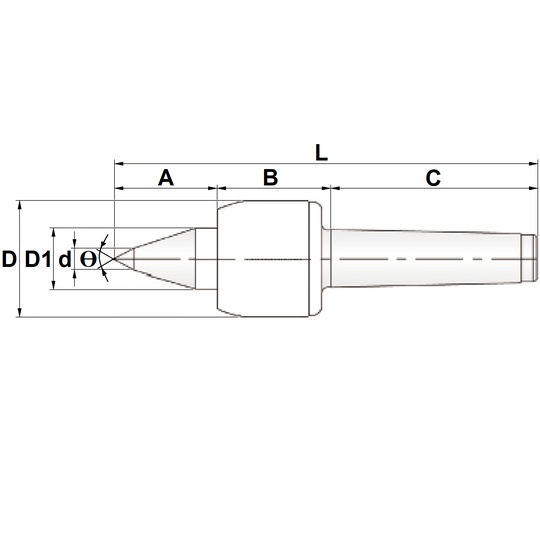

| IMTE No. | Part No. | Morse Taper | A | B | C | D | D1 | d | L | Accuracy | Max.Speed R.P.M |
θ Angle |
| IMT202573 | NCH-MT.4BT | MT#4 | 52 | 76 | 108 | 60 | 32 | 12 | 256 | 0.003 | 4500 | 60° |
| IMT202574 | NCH-MT.5BT | MT#5 | 65 | 84 | 136 | 83 | 40 | 14 | 285 | 0.003 | 3500 | 60° |
Unless otherwise specified, all dimensions are in millimeters
