Product Parameters

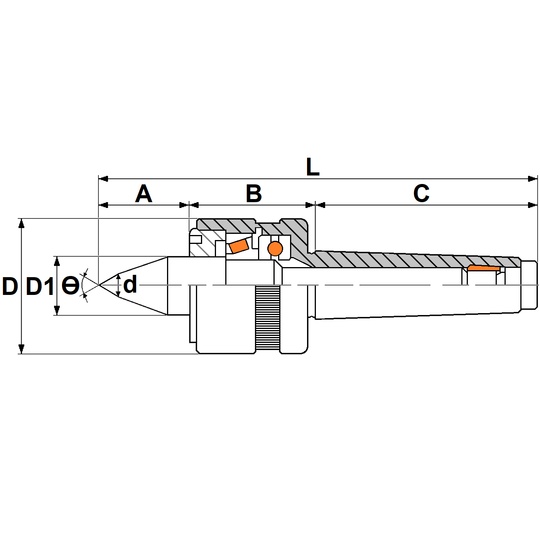

| IMTE No. | Part No. | A | B | C | D | D1 | d | L | Accuracy | Max.Speed R.P.M |
θ Angle |
| IMT202597 | NCR-MT.3B | 47 | 47 | 86 | 50 | 25 | 10 | 180 | 0.003 | 5000 | 60° |
| IMT202598 | NCR-MT.4B | 60 | 59 | 108 | 65 | 32 | 12 | 227 | 4500 | ||
| IMT202599 | NCR-MT.5B | 70 | 62 | 136 | 80 | 40 | 14 | 268 | 3500 |
Unless otherwise specified, all dimensions are in millimeters
