Product Parameters

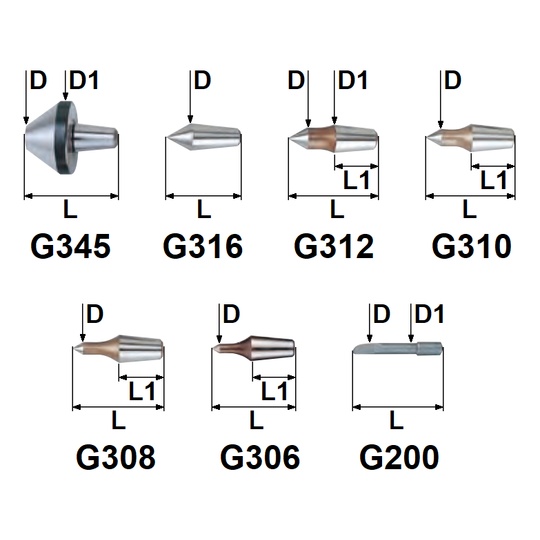

| Part No. | Compatible Morse Taper | D | D1 | L | L1 |
| G345 | MT#4 / MT#5 | 20 | 45 | 53 | – |
| G316 | 15.5 | – | 47 | – | |
| G312 | 12 | 15.5 | 47 | 26 | |
| G310 | 10 | – | 47 | 26 | |
| G308 | 8 | – | 47 | 26 | |
| G306 | 6 | – | 47 | 26 | |
| G200 | 8 | 6.5 | 52 | – |
Unless otherwise specified, all dimensions are in millimeters

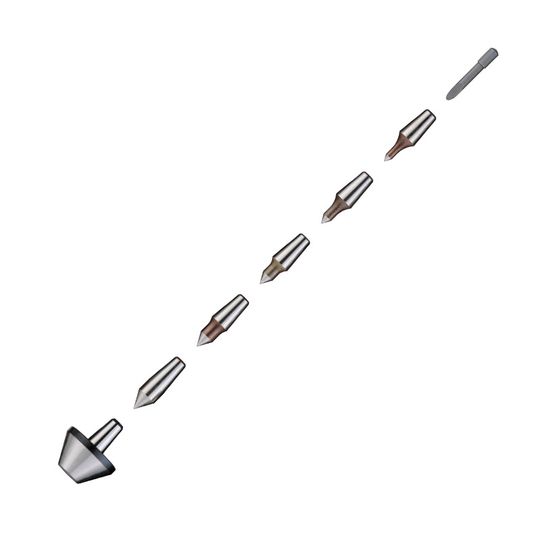

INTERCHANGEABLE TIPS for NCSP/NCFP LIVE CENTERS
L30000415
