Product Parameters

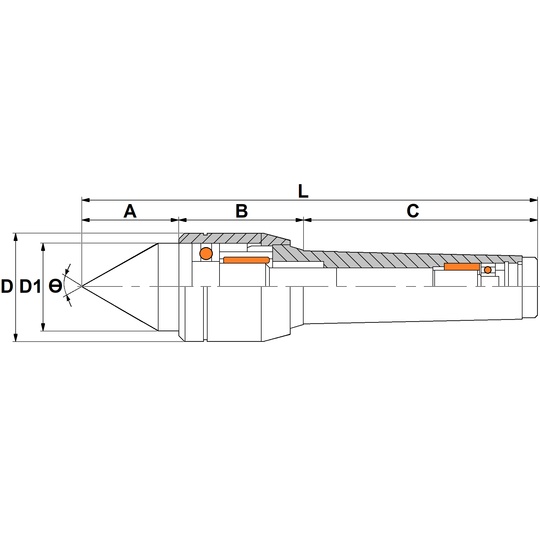

| IMTE No. | Part No. | Morse Taper |
A | B | C | D | D1 | L | Accuracy | Max.Speed R.P.M |
θ Angle |
| IMT202578 | NK-MT.2A | MT#2 | 28 | 35 | 69 | 32 | 25 | 132 | 0.003 | 5000 | 60° |
| IMT202579 | NK-MT.3A | MT#3 | 36 | 44 | 86 | 41 | 35 | 166 | 3500 | ||
| IMT202580 | NK-MT.4A | MT#4 | 41 | 51 | 108 | 47 | 40 | 200 | 3000 | ||
| IMT202581 | NK-MT.5A | MT#5 | 54 | 72 | 136 | 65 | 52 | 262 | 2000 |
Unless otherwise specified, all dimensions are in millimeters
