Product Parameters

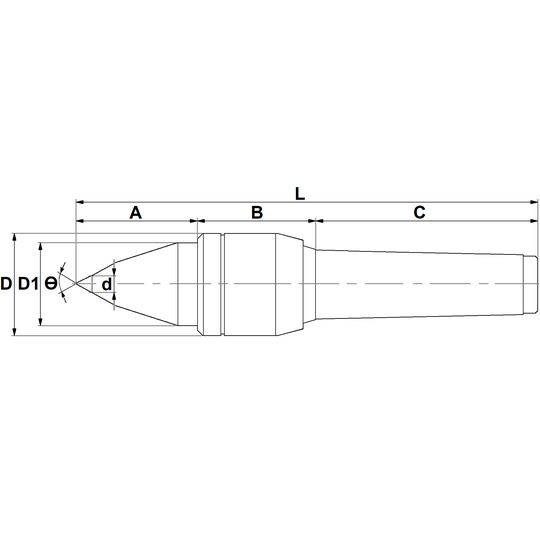

| IMTE No. | Part No. | Morse Taper |
A | B | C | D | D1 | d | L | Accuracy | Max.Speed R.P.M |
θ Angle |
| IMT202582 | NK-MT.3B | MT#3 | 46 | 44 | 86 | 41 | 25 | 10 | 176 | 0.003 | 3500 | 60° |
| IMT202583 | NK-MT.4B | MT#4 | 55 | 51 | 108 | 47 | 32 | 12 | 214 | 3000 |
Unless otherwise specified, all dimensions are in millimeters
