Product Parameters
| IMTE No. | Part No. | Center Shaft |
Outer Diameter |
Working Range |
| IMT100870 | NHD-31 MT.4 | Ø 5 | Ø 16 | Ø 17~27 |
| IMT100871 | NHD-32 MT.4 | Ø 9 | Ø 25 | Ø 27~41 |
| IMT100872 | NHD-33 MT.4 | Ø 14 | Ø 39 | Ø 40~60 |
| IMT100873 | NHD-33 MT.5 | |||
| IMT100874 | NHD-34 MT.4 | Ø 18 | Ø 53 | Ø 54~80 |
| IMT100875 | NHD-34 MT.5 |

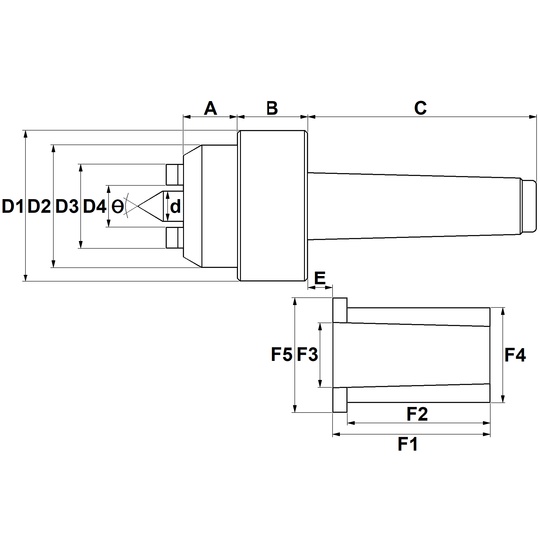

| IMTE No. | Part No. | A | B | C | D1 | D2 | D3 | D4 | d | θ | E | F1 | F2 | F3 | F4 | F5 |
| IMT100870 | NHD-31 MT.4 | 21 | 14 | 109 | 42 | 33.5 | 16.7 | 6.7 | 5 | 60° | 10 | 74.5 | 68 | 31.2 | 45 | 54.5 |
| IMT100871 | NHD-32 MT.4 | 20 | 18 | 109 | 52 | 42 | 26.5 | 12.5 | 9 | |||||||
| IMT100872 | NHD-33 MT.4 | 25 | 34 | 109 | 72 | 58 | 39.5 | 19.5 | 14 | |||||||
| IMT100873 | NHD-33 MT.5 | 25 | 34 | 109 | 72 | 58 | 39.5 | 19.5 | 14 | |||||||
| IMT100874 | NHD-34 MT.4 | 28 | 42.5 | 109 | 82 | 81.5 | 53.5 | 27.5 | 18 | |||||||
| IMT100875 | NHD-34 MT.5 | 28 | 42.5 | 109 | 82 | 81.5 | 53.5 | 27.5 | 18 |
Unless otherwise specified, all dimensions are in millimeters
