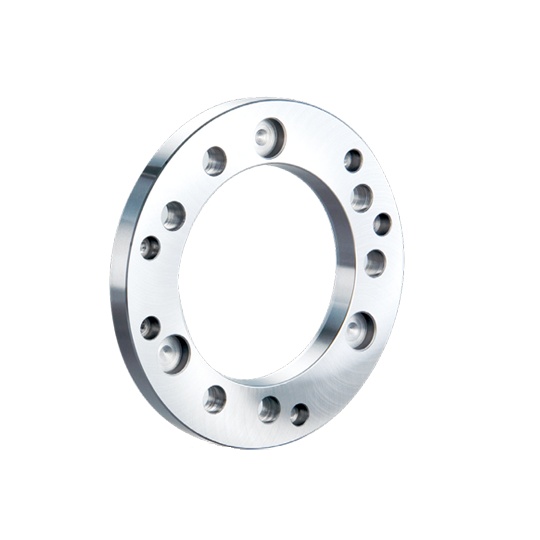

MOUNTING ADAPTERS TYPE 1 on SHORT TAPER SPINDLE NOSES DIN55026
MOUNTING ADAPTERS TYPE 1 on SHORT TAPER SPINDLE NOSES DIN55026

MOUNTING ADAPTERS TYPE 1 on SHORT TAPER SPINDLE NOSES DIN55026

Brand: ,

L30002047

Product Parameters

IMTE No. Spindle

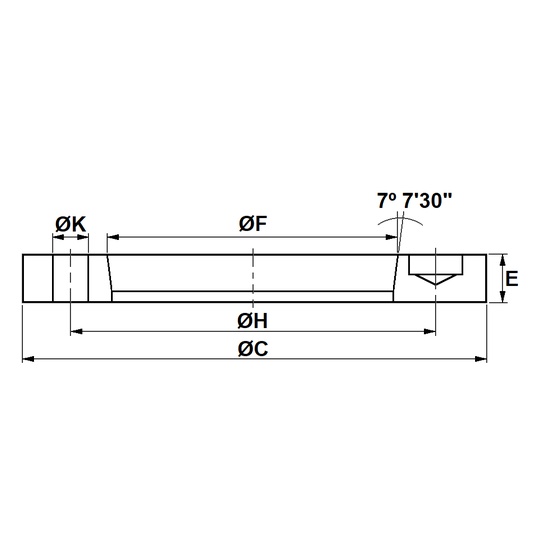

Nose		 Ø C Ø F Ø H Ø K E Matching Chuck
IMT202206 A4 110 63.513 82.55 3-11 15 N-205
IMT202207 A4 110 63.513 82.55 4-11 15 NT-205
IMT202208 A5 140 82.563 104.78 6-11 15 N-206; NB-306; NL-06; V-206; DR-06
IMT202209 A5 140 82.563 104.78 6-11 15 NT-206; VT-206
IMT202210 A5 140 82.563 104.78 4-11 15 NIT-206
IMT202211 A6 170 106.375 133.35 6-13 17 N-208; NB-208; NL-08; V-208; DR-08
IMT202212 A6 170 106.375 133.35 6-13 17 NT-208; VT-208
IMT202213 A6 170 106.375 133.35 4-13 17 NIT-208
IMT202214 A6 170 106.375 133.35 6-13 17 NHT-208
IMT202215 A8 220 139.719 171.45 6-17 18 N-210; N-212; NB-210; NL-10; V-210;
V-212; NB-310; V-212R; BL-12
IMT202216 A8 220 139.719 171.45 6-17 18 NT-210; NT-212; VT-210; VT-212
IMT202217 A8 220 139.719 171.45 4-17 18 NIT-210; NIT-212; VIT-212; VIT-212R
IMT202218 A11 300 196.869 235 6-21 22 N-215; N-218; NB-212; V-215; V-218;
V-215R; V-218R
IMT202219 A11 300 196.869 235 6-21 22 NT-215; VT-215; NT-218
IMT202220 A11 300 196.869 235 4-21 22 NIT-215; VIT-218; NIT-218
IMT202221 A15 380 285.775 330.2 6-25 27 N-220; NB-215; NB-218; V-232RD;
V-221R; V-224R; V-232R
IMT202222 A15 380 285.775 330.2 8-25 27 VIT-224R; VIT-232R
IMT202223 A20 520 412.775 463.6 6-26 25 N-224; N-232; V-240; V-250
Unless otherwise specified, all dimensions are in millimeters
