Product Parameters
| IMTE No. | Spindle Nose |

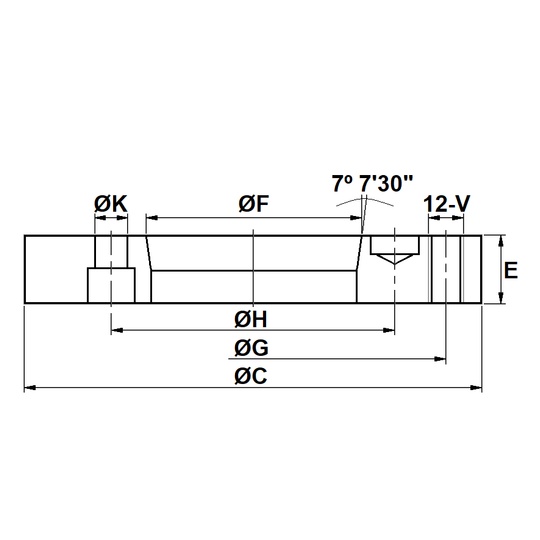

Ø C | Ø F | Ø H | Ø K | Ø G | V | E | Matching Chuck |
| IMT202224 | A4 | 140 | 63.513 | 82.55 | 11 | 104.78 | M10 | 20 | N-206; NT-206; NIT-206; NL-06; V-206 |
| IMT202225 | A5 | 170 | 82.563 | 104.78 | 11 | 133.35 | M12 | 23 | N-208; NT-208; NIT-208; NHT-208; NB-208; NL-08; V-208; VT-208 |
| IMT202226 | A6 | 220 | 106.375 | 133.35 | 13 | 171.45 | M16 | 25 | N-210; NT-210; NIT-210; NL-10; N-212; NT-212; NIT-212; V-210; VT-210; V-212; VT-212; VIT-212; NB-210; NB-310 |
| IMT202227 | A8 | 300 | 139.719 | 171.45 | 17 | 235 | M20 | 33 | N-215; NT-215; NIT-215; N-218; NB-212; V-215; VT-215; V-218; VIT-218; NIT-218 |
| IMT202228 | A11 | 380 | 196.869 | 235 | 21 | 330.2 | M24 | 41 | N-220; VIT-232; NB-215; NB-218; VIT-224; V-232 |
| IMT202229 | A11 | 520 | 196.869 | 235 | 21 | 463.6 | M24 | 45 | N-224; N-232; V-240; V-250; NIT-224 |
| IMT202230 | A15 | 520 | 285.775 | 330.2 | 25 | 463.6 | M24 | 42 | N-224; N-232; V-240; V-250; VIT-240; VIT-250; NIT-224; VE-250 |
| IMT202231 | A11 | 380 | 196.869 | 235 | 21 | 330.2 | M24 | 27 | V-221; V-224 |
| IMT202232 | A20 | 720 | 412.775 | 463.6 | 27 | 647.6 | M30 | 50 | VE-263; VE-279 |
Unless otherwise specified, all dimensions are in millimeters
