Product Parameters
| SPECIFICATION | ||||||||||||
| IMTE No. | Part No. | Through- Hole (mm) |
Plunger Stroke (mm) |
Jaw Stroke (in dia.) (mm) |
Max. Pull / Grip Force (kgf) |
Max. Operating Pressure (kgf/cm2) |
Max. Speed (R.P.M.) |
Moment of Inertia (kg/m2) |
Matching Accessories | Gripping O.D. Range (mm) |
||
| Cylinder | Hard Jaws |
Soft Jaws |
||||||||||
| IMT202758 | NIT-206 | Ø45 | 12 | 5.5 | 2243 / 5812 | 28.5 | 4500 | 0.058 | M1246 | HJ06 | HC06 | Ø15 ~ Ø169 |
| IMT202759 | NIT-206A4 | |||||||||||
| IMT202760 | NIT-206A5 | |||||||||||
| IMT202761 | NIT-206A6 | |||||||||||
| IMT202762 | NIT-208 | Ø52 | 16 | 7.4 | 3558 / 9075 | 26.5 | 3600 | 0.177 | M1552 | HJ08 | HC08 | Ø20 ~ Ø210 |
| IMT202763 | NIT-208A5 | |||||||||||
| IMT202764 | NIT-208A6 | |||||||||||
| IMT202765 | NIT-208A8 | |||||||||||
| IMT202766 | NIT-210 | Ø75 | 19 | 8.8 | 4385 / 11319 | 27.5 | 3200 | 0.324 | M1875 | HJ10 | HC10 | Ø25 ~ Ø254 |
| IMT202767 | NIT-210A6 | |||||||||||
| IMT202768 | NIT-210A8 | |||||||||||
| IMT202769 | NIT-212 | Ø91 | 23 | 10.6 | 5812 / 14990 | 27.5 | 2700 | 0.763 | M2091 | HJ12 | HC12 | Ø30 ~ Ø304 |
| IMT202770 | NIT-212A6 | |||||||||||
| IMT202771 | NIT-212A8 | |||||||||||
| IMT202772 | NIT-212A11 | |||||||||||
| IMT202773 | NIT-215 | Ø117.5 | 23 | 10.6 | 7240 / 18355 | 23.5 | 1900 | 2.331 | M2511S | HJ15 | HC15 | Ø50 ~ Ø381 |
| IMT202774 | NIT-215A8 | |||||||||||
| IMT202775 | NIT-215A11 | |||||||||||
| IMT202776 | NIT-218 | Ø117.5 | 23 | 10.6 | 7240 / 18355 | 23.5 | 1500 | 3.798 | M2511S | HJ15 | HC15 | Ø50 ~ Ø450 |
| IMT202777 | NIT-218A11 | |||||||||||
| IMT202778 | NIT-218A15 | |||||||||||
| IMT202779 | NIT-224 | Ø205 | 26 | 12 | 9177 / 23861 | 26.5 | 1000 | 15.2 | ML3320 | HJ24-1 | HC24-1 | Ø150 ~ Ø610 |
| IMT202780 | NIT-224A11 | |||||||||||
| IMT202781 | NIT-224A15 | |||||||||||

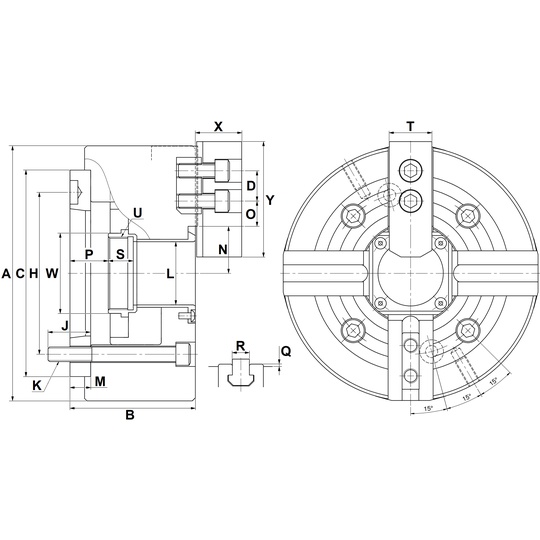

| DIMENSIONS | ||||||||||||||||||||||
| Part No. | A | B | C (H6) |
D | H | J | K | L | M | N max. |
O max. |
O min. |
P max. |
P min. |
Q | R | S | T | U max. |
W | X | Y |
| NIT-206 | 169 | 81 | 140 | 20 | 104.78 | 16 | 4-M10x80 | 45 | 5 | 32 | 22.75 | 9.25 | 11 | -1 | 2 | 12 | 19 | 31 | M55x2 | 60 | 37 | 73 |
| NIT-208 | 210 | 91 | 170 | 25 | 133.35 | 20 | 4-M12x90 | 52 | 5 | 38.7 | 29.75 | 11.75 | 14.5 | -1.5 | 2 | 14 | 20.5 | 35 | M60x2 | 66 | 38 | 95 |
| NIT-210 | 254 | 100 | 220 | 30 | 171.45 | 22 | 4-M16x100 | 75 | 5 | 51.4 | 33.75 | 14.25 | 8.5 | -10.5 | 2 | 16 | 25 | 40 | M85x2 | 94 | 43 | 110 |
| NIT-212 | 304 | 110 | 220 | 30 | 171.45 | 23 | 4-M16x110 | 91 | 6 | 61.3 | 45.75 | 15.75 | 8 | -15 | 2 | 21 | 28 | 50 | M100x2 | 108 | 51 | 130 |
| NIT-215 | 381 | 133 | 300 | 43 | 235 | 30 | 4-M20x135 | 117.5 | 6 | 82 | 45.25 | 15.25 | 7 | -16 | 5 | 22 | 43 | 62 | M130x2 | 139 | 66 | 165 |
| NIT-218 | 450 | 133 | 300 | 43 | 235 | 30 | 4-M20x135 | 117.5 | 6 | 82 | 79.75 | 15.25 | 7 | -16 | 5 | 22 | 43 | 62 | M130x2 | 139 | 66 | 165 |
| NIT-224 | 610 | 147 | 520 | 60 | 463.6 | 35 | 8-M24x150 | 205 | 6 | 131.9 | 87.5 | 24.5 | 16 | -10 | 5 | 25 | 38 | 64 | M215x3 | 230 | 73 | 180 |
Unless otherwise specified, all dimensions are in millimeters
