Product Parameters

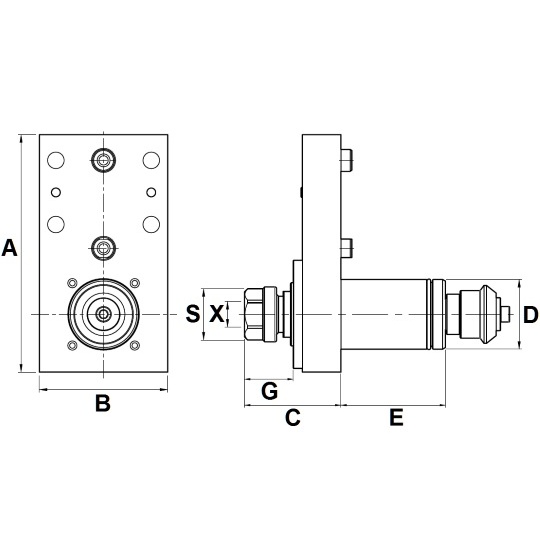

| IMTE No. | Part No. | D | X Capacity |
S | Max.speed (R.P.M.) |
A | B | C | E | G |
| IMT100913 | OEM 1U783000 | 38 | 1~10 ER16 | 30 | 6000 | 129.5 | 70 | 52.5 | 57 | 26.5 |
Unless otherwise specified, all dimensions are in millimeters
For the detailed list of compatible machine models – please click the Compatible Machines tab
