Product Parameters

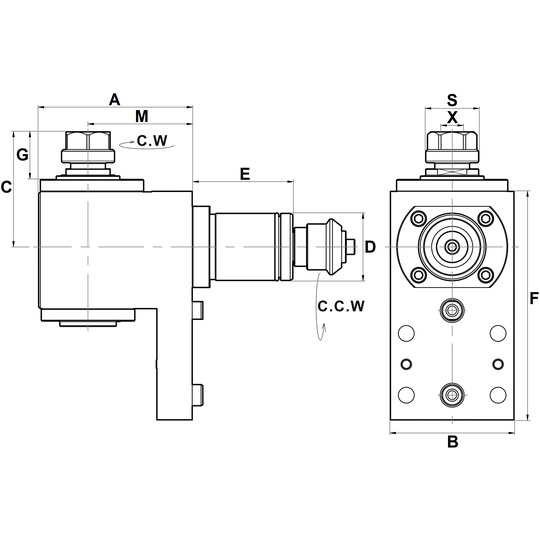

| IMTE No. | Part No. | D | X Capacity |
S | Max.Speed R.P.M. |
A | B | C | E | F | G | M |
| IMT300098 | BNC-DF38-ER16-59 | 38 | 1~10 ER16 | 30 | 5000 | 87 | 70 | 65 | 57 | 129.5 | 27 | 59 |
Unless otherwise specified, all dimensions are in millimeters
For the detailed list of compatible machine models – please click the Compatible Machines tab
