Product Parameters

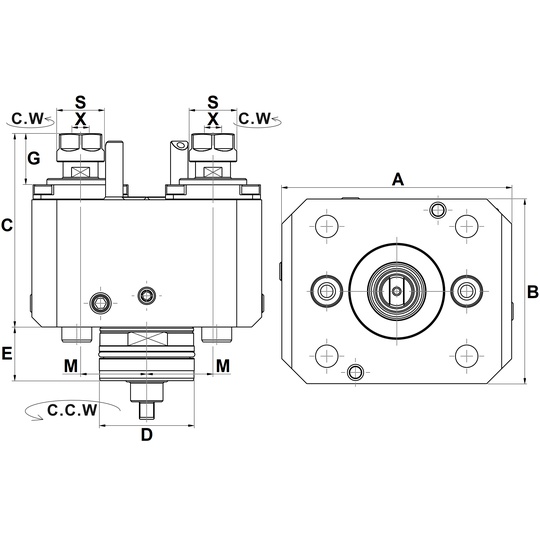

| IMTE No. | Part No. | D | X Capacity |
S | Max.Speed R.P.M. |
A | B | C | E | G | M |
| IMT300095 | BNA-DA38-ER11-DX | 38 | 1~7 ER11 | 19 | 6000 | 92 | 74 | 77.5 | 21.5 | 20.5 | 26.5 |
Unless otherwise specified, all dimensions are in millimeters
For the detailed list of compatible machine models – please click the Compatible Machines tab
