Product Parameters

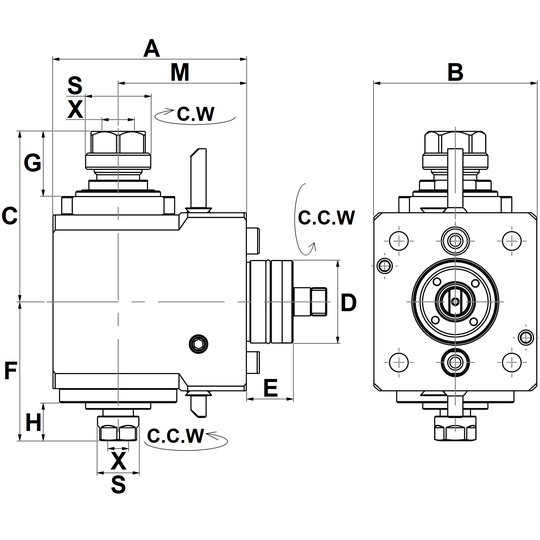

| IMTE No. | Part No. | D | X Capacity |
S | Max.Speed R.P.M. |
A | B | C | E | F | G | H | M |
| IMT300090 | BNA-DF38-ER16-ER11-59D | 38 | 1st-ER16 2nd-ER11 |
30 19 |
5000 | 89 | 75 | 78.5 | 21.5 | 64 | 30 | 17.5 | 59 |
Unless otherwise specified, all dimensions are in millimeters
For the detailed list of compatible machine models – please click the Compatible Machines tab
