Product Parameters

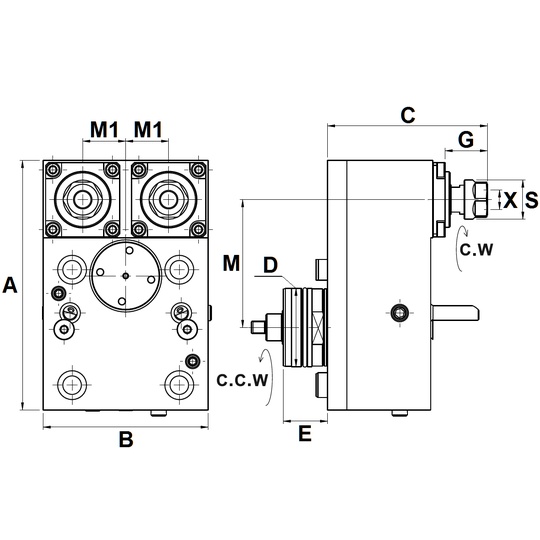

| IMTE No. | Part No. | D | X Capacity |
S | Max.speed R.P.M. |
A | B | C | E | G | M | M1 |
| IMT300087 | OEM MIYANO CL70A000/CL70C000 | 38 | 1~7 ER11 | 19 | 6000 | 121 | 80 | 77.5 | 21.5 | 20.5 | 62 | 20.85 |
Unless otherwise specified, all dimensions are in millimeters
For the detailed list of compatible machine models – please click the Compatible Machines tab
