Product Parameters

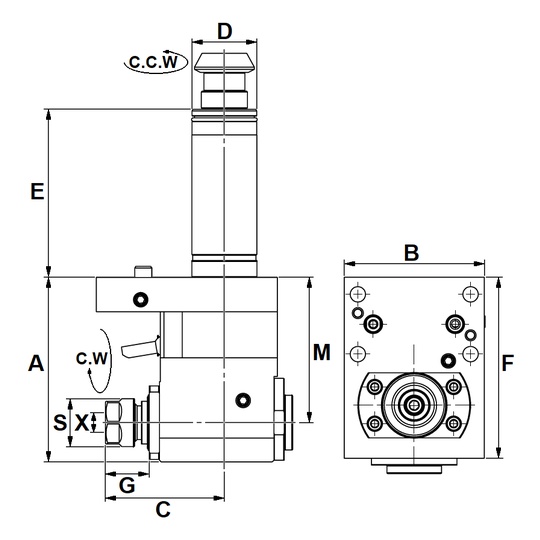

| IMTE No. | Part No. | D | X Capacity |
S | Max.Speed R.P.M. |
A | B | C | E | F | G | M |
| IMT300097 | OEM MIYANO DV70A000 | 38 | 1~10 ER16 | 28 | 5000 | 108 | 82 | 70 | 98.5 | 106 | 26 | 85 |
Unless otherwise specified, all dimensions are in millimeters
For the detailed list of compatible machine models – please click the Compatible Machines tab
