BMT AXIAL DRILLING MILLING HEAD ER25 for BIGLIA
BMT AXIAL DRILLING MILLING HEAD ER25 for BIGLIA

BMT AXIAL DRILLING MILLING HEAD ER25 for BIGLIA

CAD $2,249.00

SKU: IMT201002 Brand:

IMT201002 / L30000396

Product Parameters

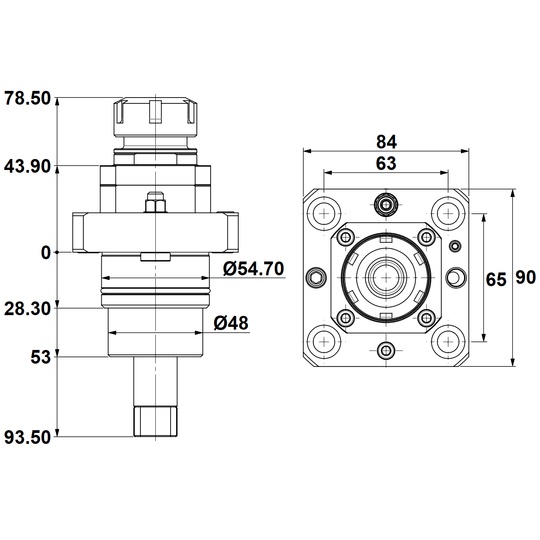

Tool Holder Turret Interface:

  • Tooling Interface: BMT-BOLT PATTERN 63×65 OD=54.7 BIGLIA
  • Power Coupling: DIN1809



IMTE No. Part No. ER Capacity Rotation Max.speed
(R.P.M.)		 Coolant
Supply
IMT201002 BIG-DA55-ER25 1~16 ER25 6000 external
For the detailed list of compatible machine models – please click the Compatible Machines tab
